PE45709
ActivePasternack
2.4MM FEMALE FIELD REPLACEABLE C
PE45709
ActivePasternack
2.4MM FEMALE FIELD REPLACEABLE C
Description
General part information
PE45709

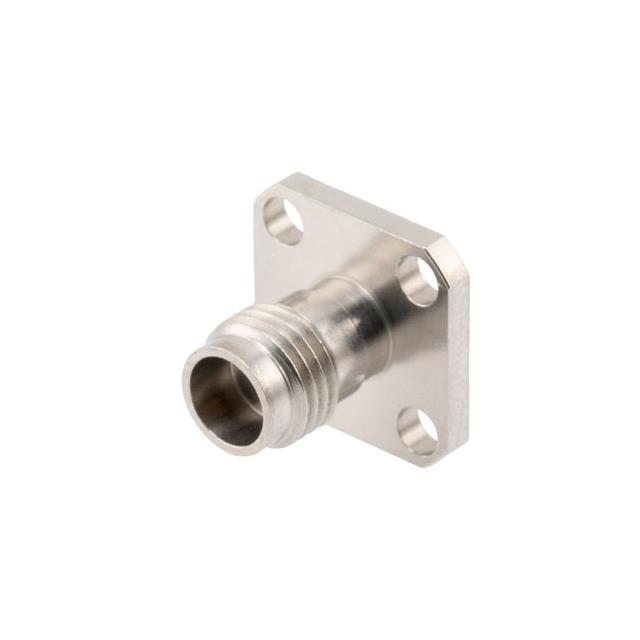

2.4mm (APC-2.4, OS-50) Connector Receptacle, Female Socket 50 Ohms Panel Mount; Surface Mount Compression
Technical Specifications
Parameters and characteristics for this part
| Specification | PE45709 |
|---|---|
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Plug Diameter | 2.4 mm |
| Connector Style | APC-2.4, OS-50 |
| Connector Type | Recepture, Female Socket |
| Contact Termination | Compression |
| Dielectric Material | Polyetherimide (PEI) |
| Fastening Type | Threaded |
| Frequency - Max | 50 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount, Surface Mount |
| Number of Ports | 1 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -40 °C |
| Shield Termination | Screw |
