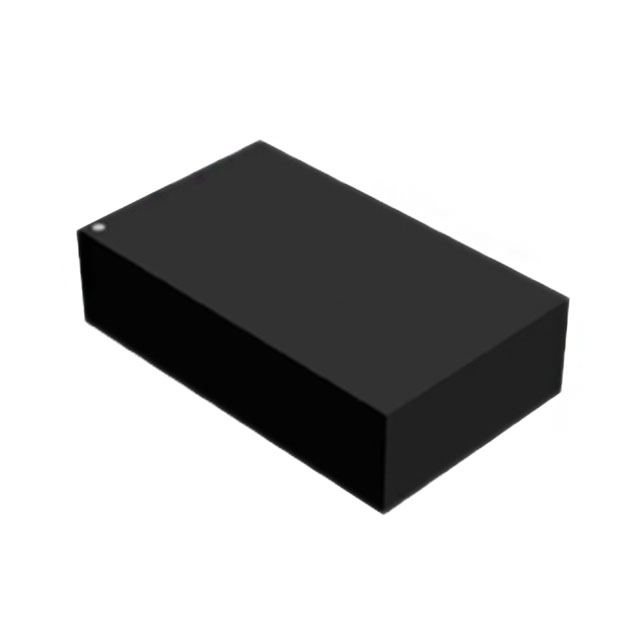

ASTMK-8.192KHZ-LQ-DCC-H-T
ObsoleteAbracon LLC
MEMS OSC XO 8.1920KHZ LVCMOS SMD
ASTMK-8.192KHZ-LQ-DCC-H-T
ObsoleteAbracon LLC
MEMS OSC XO 8.1920KHZ LVCMOS SMD
Description
General part information
ASTMK-8.192KHZ-LQ-DCC-H-T
8.192 kHz XO (Standard) LVCMOS Oscillator 1.5V ~ 3.63V 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | ASTMK-8.192KHZ-LQ-DCC-H-T |
|---|---|
| Base Resonator | MEMS |
| Current - Supply (Max) | 1.4 µA |
| Frequency | 8.192 kHz |
| Frequency Stability | 100 ppm |
| Height - Seated (Max) | 0.024 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | LVCMOS |
| Package / Case | 4-SMD, No Lead |
| Package Length | 2 mm |
| Package Name | 4-SMD |
| Package Width | 1.2 mm |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.047 in |
| Type | XO (Standard) |
| Voltage - Supply (Maximum) | 3.63 V |
| Voltage - Supply (Minimum) | 1.5 V |
