043030 Series

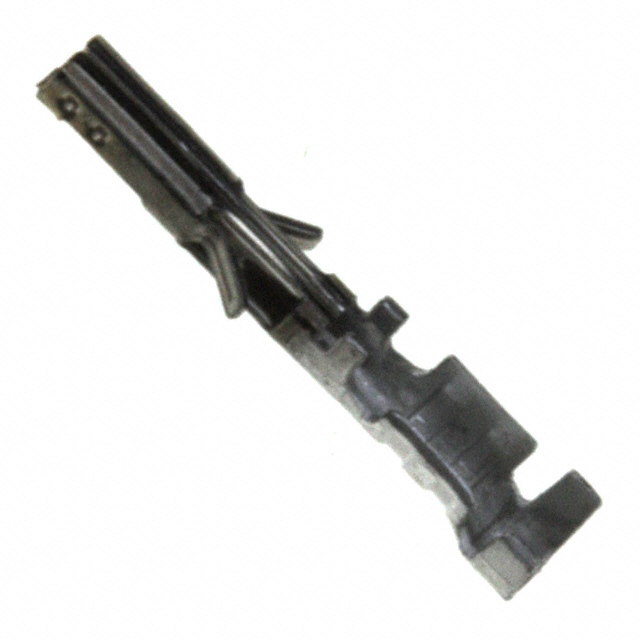

Headers & Wire Housings MicroFit Fem Crp Term 15Au 18AWG

Part	Contact Termination	Pin or Socket	Type	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Contact Finish	Contact Finish Thickness	Wire Gauge
Molex 0430300009	Crimp	Socket	Power	24 AWG	19.5 AWG	Gold	30 µin
Molex 0430300001	Crimp	Socket	Power	24 AWG	19.5 AWG	Tin	40 µin
Molex 0430300006	Crimp	Socket	Power	30 AWG	26 AWG	Gold	30 µin
Molex 0430300040	Crimp	Socket	Power			Gold	30 µin	18 AWG
Molex 0430300002	Crimp	Socket	Power	24 AWG	19.5 AWG	Gold	15 µin
Molex 0430300053	Crimp	Socket		24 AWG	19.5 AWG	Gold	30 µin
Molex 0430300051	Crimp	Socket		24 AWG	19.5 AWG	Tin	40 µin
Molex 0430300007	Crimp	Socket	Power	24 AWG	19.5 AWG	Tin	40 µin
Molex 0430300038	Crimp	Socket	Stamped			Tin	40 µin	18 AWG
Molex 0430300008	Crimp	Socket	Power	24 AWG	19.5 AWG	Gold	15 µin
