AP7311-25WG-7
Active150MA, LOW QUIESCENT CURRENT, FAST TRANSIENT LOW DROPOUT LINEAR REGULATOR
Deep-Dive with AI
Search across all available documentation for this part.
AP7311-25WG-7
Active150MA, LOW QUIESCENT CURRENT, FAST TRANSIENT LOW DROPOUT LINEAR REGULATOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AP7311-25WG-7 |
|---|---|
| Control Features | Enable |
| Current - Output | 150 mA |
| Current - Quiescent (Iq) | 75 µA |
| Current - Supply (Max) [Max] | 85 µA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |

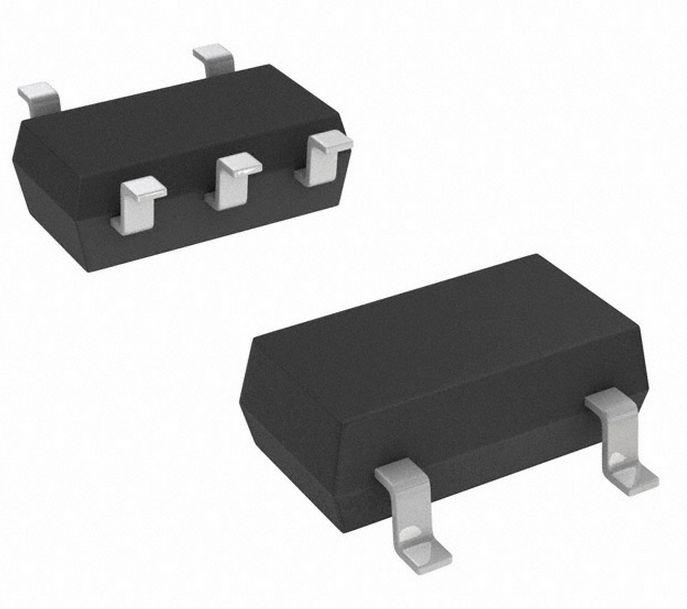

| Package / Case | SC-74A, SOT-753 |
| Protection Features | Over Temperature, Over Current, Short Circuit |
| PSRR | 65 dB |
| Supplier Device Package | SOT-25 |
| Voltage - Input (Max) [Max] | 6 V |
| Voltage - Output (Min/Fixed) | 2.5 V |
| Voltage Dropout (Max) [Max] | 0.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.14 | |
| 6000 | $ 0.13 | |||
| 9000 | $ 0.13 | |||
| 15000 | $ 0.12 | |||
| 21000 | $ 0.12 | |||
| 30000 | $ 0.11 | |||
| 75000 | $ 0.11 | |||
Description
General part information
AP7311 Series
The AP7311 is a 150mA, adjustable and fixed output voltage, low dropout linear regulator. The device included pass element, error amplifier, band-gap, current limit and thermal shutdown circuitry. The device is turned on when EN pin is set to logic high level. The characteristics of low dropout voltage and low quiescent current make it suitable for low power applications, for example, battery powered devices. The typical quiescent current is approximately 65μA. Built-in current-limit and thermal-shutdown functions prevent IC from damage in fault conditions. The AP7311 is available in SOT25 package.
