8-968975-2
ActiveTE Connectivity AMP Connectors

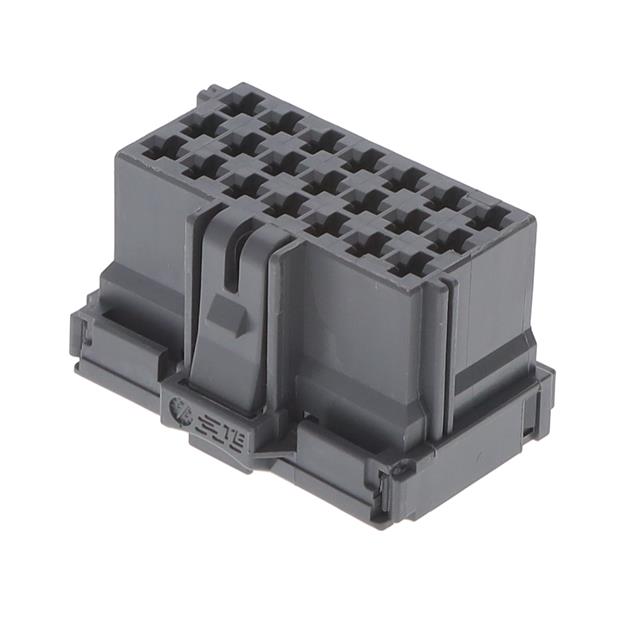

MCP2.8 GEH ASSY 21P
Deep-Dive with AI
Search across all available documentation for this part.
8-968975-2
ActiveTE Connectivity AMP Connectors
MCP2.8 GEH ASSY 21P
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 8-968975-2 |
|---|---|
| Color | Gray |
| Connector Type | Housing for Female Insert |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Features | Terminal Position Lock (TPA) |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 21 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
| Row Spacing | 0.217 in |
| Row Spacing | 5.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.77 | |
| 10 | $ 1.54 | |||
| 25 | $ 1.47 | |||
| 50 | $ 1.44 | |||
| 100 | $ 1.38 | |||
| 250 | $ 1.24 | |||
| 900 | $ 1.11 | |||
| 1800 | $ 0.95 | |||
| 2700 | $ 0.92 | |||
968975 Series
MCP2.8 GEH ASSY 21P
| Part | Contact Termination | Fastening Type | Row Spacing | Row Spacing | Connector Type | Pitch [x] | Pitch [x] | Mounting Type | Number of Positions | Features | Contact Type | Insulation Material | Color | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 8-968975-2 | Crimp | Latch Lock | 0.217 in | 5.5 mm | Housing for Female Insert | 5 mm | 0.197 in | Free Hanging (In-Line) | 21 | Terminal Position Lock (TPA) | Female Socket | Polybutylene Terephthalate (PBT), Glass Filled | Gray | 3 | -40 °C | 120 °C |
Description
General part information
968975 Series
21 Rectangular Connectors - Housings Housing for Female Insert Gray 0.197" (5.00mm)
