USB50403E3/TR7

Active

Microchip Technology

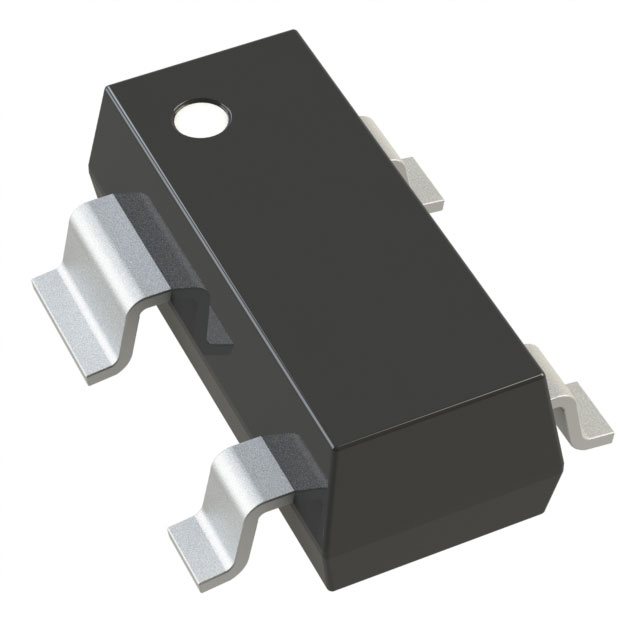

TVS DIODE 3.3VWM 11VC SOT143

Search across all available documentation for this part.

Active

Microchip Technology

TVS DIODE 3.3VWM 11VC SOT143

Technical Specifications

Parameters and characteristics for this part

Specification	USB50403E3/TR7

Applications	Ethernet
Capacitance @ Frequency	3 pF
Current - Peak Pulse (10/1000µs)	5 A
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	TO-253-4, TO-253AA
Power - Peak Pulse	500 W
Power Line Protection	False
Supplier Device Package	SOT-143
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Breakdown (Min) [Min]	4 V
Voltage - Clamping (Max) @ Ipp [Max]	11 V
Voltage - Reverse Standoff (Typ)	3.3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Unidirectional TVSarray

Part	Applications	Capacitance @ Frequency	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Unidirectional Channels [custom]	Package / Case	Type	Power - Peak Pulse	Current - Peak Pulse (10/1000µs)	Voltage - Reverse Standoff (Typ)	Voltage - Clamping (Max) @ Ipp [Max]	Supplier Device Package	Power Line Protection	Voltage - Breakdown (Min) [Min]
Microchip Technology USB50403E3/TR7	Ethernet	3 pF	Surface Mount	-55 °C	150 °C	1	TO-253-4, TO-253AA	Zener	500 W	5 A	3.3 V	11 V	SOT-143		4 V

General part information

This USB50403 – USB50424 Transient Voltage Suppressor (TVS) family is packaged in a

SOT-143 configuration giving protection to 1 unidirectional data or interface line. It is designed

for use in applications where protection is required at the board level from voltage transients
