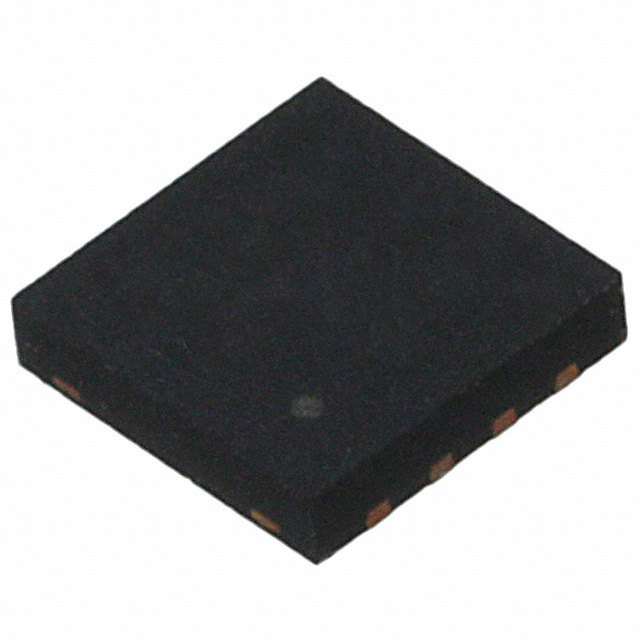

SFN08B1001CBQLF7

Obsolete

TT Electronics/BI

RES ARRAY 7 RES 1K OHM 8DFN

Search across all available documentation for this part.

Obsolete

TT Electronics/BI

RES ARRAY 7 RES 1K OHM 8DFN

Technical Specifications

Parameters and characteristics for this part

RES ARRAY 7 RES 1K OHM 8DFN

Part	Number of Resistors	Number of Pins	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Circuit Type	Temperature Coefficient	Supplier Device Package	Resistor-Ratio-Drift	Mounting Type	Tolerance	Resistance (Ohms)	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Resistor Matching Ratio
TT Electronics/BI SFN08B1001CBQLF7	7	8	0.157 in	4 mm	4 mm	0.157 "	Bussed	25 ppm/°C	8-SON (4x4)	±5ppm/°C	Surface Mount	0.25 %	1 kOhms	8-DFN Exposed Pad	-55 °C	125 °C	0.05 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

1k Ohm ±0.25% 100mW Power Per Element Bussed 7 Resistor Network/Array ±25ppm/°C 8-DFN Exposed Pad
