387-066-555-804

Active

EDAC Inc.

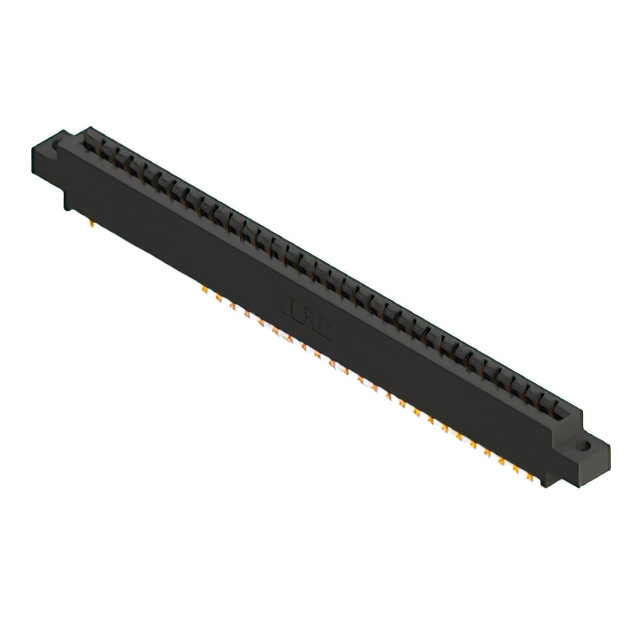

CARD EDGE CONNECTOR, 66 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.156 INCH PITCH, SOLDER TERMINAL, HOLE 0.156, BLACK INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

387-066-555-804

Active

EDAC Inc.

CARD EDGE CONNECTOR, 66 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.156 INCH PITCH, SOLDER TERMINAL, HOLE 0.156, BLACK INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	387-066-555-804

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Extender
Flange Feature	Top Mount Opening, Unthreaded
Flange Feature [diameter]	0.156 in
Flange Feature [diameter]	3.96 mm
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Board Edge, Straddle Mount
Number of Positions	66
Number of Positions/Bay/Row [custom]	33
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2

387-066 Series

...

Part	Number of Positions/Bay/Row [custom]	Card Type	Number of Positions	Pitch [x]	Pitch [x]	Color	Material - Insulation	Flange Feature	Flange Feature	Termination Rows	Termination	Read Out	Contact Material	Contact Finish	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Gender	Contact Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Features	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]
EDAC Inc. 387-066-523-802	33	Non Specified - Dual Edge	66	0.156 in	3.96 mm	Black	Polyester Thermoplastic	3.25 mm	0.128 in	2	Solder	Dual	Copper Alloy	Gold	Through Hole	-40 °C	105 ░C	2	10 Áin	0.25 Ám	Female	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 387-066-555-804	33	Non Specified - Dual Edge	66	0.156 in	3.96 mm	Black	Polyester Thermoplastic			2	Solder Eyelet(s)	Dual	Copper Alloy	Gold	Board Edge Straddle Mount	-40 °C	105 ░C	2	10 Áin	0.25 Ám	Female	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Card Extender	0.156 in	Top Mount Opening Unthreaded	3.96 mm
EDAC Inc. 387-066-542-878	33	Non Specified - Dual Edge	66	0.156 in	3.96 mm	Black	Polyester Thermoplastic			2	Wire Wrap	Dual	Copper Alloy	Gold	Through Hole	-40 °C	105 ░C	2	10 Áin	0.25 Ám	Female	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in			4-40 Threaded Insert Top Mount Opening
EDAC Inc. 387-066-524-804	33	Non Specified - Dual Edge	66	0.156 in	3.96 mm	Black	Polyester Thermoplastic			2	Solder	Dual	Copper Alloy	Gold	Through Hole	-40 °C	105 ░C	2	10 Áin	0.25 Ám	Female	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in		0.156 in	Top Mount Opening Unthreaded	3.96 mm
EDAC Inc. 387-066-520-802	33	Non Specified - Dual Edge	66	0.156 in	3.96 mm	Black	Polyester Thermoplastic	3.25 mm	0.128 in	2	Solder	Dual	Copper Alloy	Gold	Through Hole	-40 °C	105 ░C	2	10 Áin	0.25 Ám	Female	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 387-066-520-208	33	Non Specified - Dual Edge	66	0.156 in	3.96 mm	Black	Polyester Thermoplastic			2	Solder	Dual	Copper Alloy	Gold	Through Hole	-40 °C	105 ░C	2	10 Áin	0.25 Ám	Female	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in			4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 387-066-520-804	33	Non Specified - Dual Edge	66	0.156 in	3.96 mm	Black	Polyester Thermoplastic			2	Solder	Dual	Copper Alloy	Gold	Through Hole	-40 °C	105 ░C	2	10 Áin	0.25 Ám	Female	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in		0.156 in	Top Mount Opening Unthreaded	3.96 mm
EDAC Inc. 387-066-520-203	33	Non Specified - Dual Edge	66	0.156 in	3.96 mm	Black	Polyester Thermoplastic			2	Solder	Dual	Copper Alloy	Gold	Through Hole	-40 °C	105 ░C	2	10 Áin	0.25 Ám	Female	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in		0.116 in	Floating Bobbin Flush Mount	2.95 mm
EDAC Inc. 387-066-541-268	33	Non Specified - Dual Edge	66	0.156 in	3.96 mm	Black	Polyester Thermoplastic			2	Wire Wrap	Dual	Copper Alloy	Gold	Through Hole	-40 °C	105 ░C	2	10 Áin	0.25 Ám	Female	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in			4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 387-066-558-268	33	Non Specified - Dual Edge	66	0.156 in	3.96 mm	Black	Polyester Thermoplastic			2	Wire Wrap	Dual	Copper Alloy	Gold	Through Hole Right Angle	-40 °C	105 ░C	2	10 Áin	0.25 Ám	Female	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in			4-40 Flush Mount Threaded Insert Top Opening

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 21.09
Newark	Each	1	$ 23.72
		100	$ 11.85
		250	$ 10.06
		500	$ 8.27
		1000	$ 5.97

Description

General part information

387-066 Series

66 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
