SSQE48T07120-NABNG

Active

Bel Power Solutions

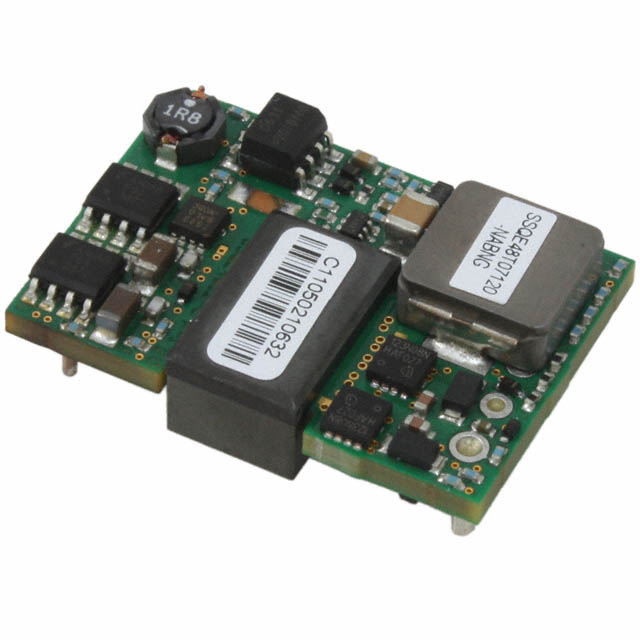

DC DC CONVERTER 12V 84W

Deep-Dive with AI

Search across all available documentation for this part.

SSQE48T07120-NABNG

Active

Bel Power Solutions

DC DC CONVERTER 12V 84W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 67.23
		5	$ 66.70
		10	$ 66.17
		25	$ 64.07
		40	$ 60.92

Description

General part information

SSQE48 Series

Isolated Module DC DC Converter 1 Output 12V 7A 36V - 75V Input

Documents

Technical documentation and resources

No documents available

Specification	SSQE48T07120-NABNG	SSQE48 Series

Applications	ITE (Commercial)	ITE (Commercial)
Control Features	Active Low, Enable	Active Low, Enable
Current - Output (Max)	7 A	7 A
Current - Output (Max)	-	10 - 25 A
Efficiency	92 %	83 - 92 %
Features	OTP, Remote On/Off, OVP, UVLO, OCP	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	8-DIP Module, 1/16 Brick	8-DIP Module, 1/16 Brick
Power (Watts)	84 W	30 - 84 W
Size / Dimension [x]	33 mm	33 mm
Size / Dimension [x]	1.3 "	1.3 "
Size / Dimension [y]	22.8 mm	22.8 mm
Size / Dimension [y]	0.9 "	0.9 "
Size / Dimension [z]	9.5 mm	9.5 mm
Size / Dimension [z]	0.37 in	0.37 in
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	75 V	75 V
Voltage - Input (Min) [Min]	36 V	36 V
Voltage - Isolation	2250 VDC	2250 VDC
Voltage - Output 1	12 V	1.2 - 12 V

Part

Size / Dimension [y]

Size / Dimension [z]

Size / Dimension [x]

Size / Dimension [y]

Size / Dimension [z]

Size / Dimension [x]

Current - Output (Max) [Max]

Voltage - Output 1

Number of Outputs

Package / Case

Type

Features

Power (Watts)

Voltage - Input (Min) [Min]

Efficiency

Voltage - Isolation

Applications

Mounting Type

Control Features

Voltage - Input (Max) [Max]

Operating Temperature [Max]

Operating Temperature [Min]

Current - Output (Max)

Bel Power Solutions

SSQE48T25025-NAA0G

22.8 mm

9.5 mm

33 mm

0.9 "

0.37 in

1.3 "

25 A

2.5 V

8-DIP Module, 1/16 Brick

Isolated Module

OCP, OTP, OVP, Remote On/Off, SCP, UVLO

63 W

36 V

88 %

2250 VDC

ITE (Commercial)

Through Hole

Active Low, Enable

75 V

85 °C

-40 °C

Bel Power Solutions

SSQE48T07120-NABNG

22.8 mm

9.5 mm

33 mm

0.9 "

0.37 in

1.3 "

12 V

8-DIP Module, 1/16 Brick

Isolated Module

OCP, OTP, OVP, Remote On/Off, UVLO

84 W

36 V

92 %

2250 VDC

ITE (Commercial)

Through Hole

Active Low, Enable

75 V

85 °C

-40 °C

7 A

Bel Power Solutions

SSQE48T07120-NABFG

22.8 mm

9.5 mm

33 mm

0.9 "

0.37 in

1.3 "

12 V

8-DIP Module, 1/16 Brick

Isolated Module

OCP, OTP, OVP, Remote On/Off, UVLO

84 W

36 V

92 %

2250 VDC

ITE (Commercial)

Through Hole

Active Low, Enable

75 V

85 °C

-40 °C

7 A

Bel Power Solutions

SSQE48T20033-NAC0G

22.8 mm

9.5 mm

33 mm

0.9 "

0.37 in

1.3 "

20 A

3.3 V

8-DIP Module, 1/16 Brick

Isolated Module

OCP, OTP, OVP, Remote On/Off, UVLO

36 V

91 %

2250 VDC

ITE (Commercial)

Through Hole

Active Low, Enable

75 V

85 °C

-40 °C

Bel Power Solutions

SSQE48T07120-NACNG

22.8 mm

9.5 mm

33 mm

0.9 "

0.37 in

1.3 "

12 V

8-DIP Module, 1/16 Brick

Isolated Module

OCP, OTP, OVP, Remote On/Off, UVLO

84 W

36 V

92 %

2250 VDC

ITE (Commercial)

Through Hole

Active Low, Enable

75 V

85 °C

-40 °C

7 A

Bel Power Solutions

SSQE48T13050-NAB0G

22.8 mm

9.5 mm

33 mm

0.9 "

0.37 in

1.3 "

13 A

5 V

8-DIP Module, 1/16 Brick

Isolated Module

OCP, OTP, OVP, Remote On/Off, UVLO

65 W

36 V

90 %

2250 VDC

ITE (Commercial)

Through Hole

Active Low, Enable

75 V

85 °C

-40 °C

Bel Power Solutions

SSQE48T25025-NACNG

22.8 mm

9.5 mm

33 mm

0.9 "

0.37 in

1.3 "

25 A

2.5 V

8-DIP Module, 1/16 Brick

Isolated Module

OCP, OTP, OVP, Remote On/Off, SCP, UVLO

63 W

36 V

88 %

2250 VDC

ITE (Commercial)

Through Hole

Active Low, Enable

75 V

85 °C

-40 °C

Bel Power Solutions

SSQE48T10033-NAC0G

22.8 mm

9.5 mm

33 mm

0.9 "

0.37 in

1.3 "

10 A

3.3 V

8-DIP Module, 1/16 Brick

Isolated Module

OCP, OTP, OVP, Remote On/Off, UVLO

33 W

36 V

90 %

2250 VDC

ITE (Commercial)

Through Hole

Active Low, Enable

75 V

85 °C

-40 °C

Bel Power Solutions

SSQE48T10033-NAB0G

22.8 mm

9.5 mm

33 mm

0.9 "

0.37 in

1.3 "

10 A

3.3 V

8-DIP Module, 1/16 Brick

Isolated Module

OCP, OTP, OVP, Remote On/Off, UVLO

33 W

36 V

90 %

2250 VDC

ITE (Commercial)

Through Hole

Active Low, Enable

75 V

85 °C

-40 °C

Bel Power Solutions

SSQE48T15033-NABNG

22.8 mm

9.5 mm

33 mm

0.9 "

0.37 in

1.3 "

15 A

3.3 V

8-DIP Module, 1/16 Brick

Isolated Module

OCP, OTP, OVP, Remote On/Off, UVLO

50 W

36 V

90 %

2250 VDC

ITE (Commercial)

Through Hole

Active Low, Enable

75 V

85 °C

-40 °C

Part	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Current - Output (Max) [Max]	Voltage - Output 1	Number of Outputs	Package / Case	Type	Features	Power (Watts)	Voltage - Input (Min) [Min]	Efficiency	Voltage - Isolation	Applications	Mounting Type	Control Features	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max)
Bel Power Solutions SSQE48T25025-NAA0G	22.8 mm	9.5 mm	33 mm	0.9 "	0.37 in	1.3 "	25 A	2.5 V	1	8-DIP Module, 1/16 Brick	Isolated Module	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	63 W	36 V	88 %	2250 VDC	ITE (Commercial)	Through Hole	Active Low, Enable	75 V	85 °C	-40 °C
Bel Power Solutions SSQE48T07120-NABNG	22.8 mm	9.5 mm	33 mm	0.9 "	0.37 in	1.3 "		12 V	1	8-DIP Module, 1/16 Brick	Isolated Module	OCP, OTP, OVP, Remote On/Off, UVLO	84 W	36 V	92 %	2250 VDC	ITE (Commercial)	Through Hole	Active Low, Enable	75 V	85 °C	-40 °C	7 A
Bel Power Solutions SSQE48T07120-NABFG	22.8 mm	9.5 mm	33 mm	0.9 "	0.37 in	1.3 "		12 V	1	8-DIP Module, 1/16 Brick	Isolated Module	OCP, OTP, OVP, Remote On/Off, UVLO	84 W	36 V	92 %	2250 VDC	ITE (Commercial)	Through Hole	Active Low, Enable	75 V	85 °C	-40 °C	7 A
Bel Power Solutions SSQE48T20033-NAC0G	22.8 mm	9.5 mm	33 mm	0.9 "	0.37 in	1.3 "	20 A	3.3 V	1	8-DIP Module, 1/16 Brick	Isolated Module	OCP, OTP, OVP, Remote On/Off, UVLO		36 V	91 %	2250 VDC	ITE (Commercial)	Through Hole	Active Low, Enable	75 V	85 °C	-40 °C
Bel Power Solutions SSQE48T07120-NACNG	22.8 mm	9.5 mm	33 mm	0.9 "	0.37 in	1.3 "		12 V	1	8-DIP Module, 1/16 Brick	Isolated Module	OCP, OTP, OVP, Remote On/Off, UVLO	84 W	36 V	92 %	2250 VDC	ITE (Commercial)	Through Hole	Active Low, Enable	75 V	85 °C	-40 °C	7 A
Bel Power Solutions SSQE48T13050-NAB0G	22.8 mm	9.5 mm	33 mm	0.9 "	0.37 in	1.3 "	13 A	5 V	1	8-DIP Module, 1/16 Brick	Isolated Module	OCP, OTP, OVP, Remote On/Off, UVLO	65 W	36 V	90 %	2250 VDC	ITE (Commercial)	Through Hole	Active Low, Enable	75 V	85 °C	-40 °C
Bel Power Solutions SSQE48T25025-NACNG	22.8 mm	9.5 mm	33 mm	0.9 "	0.37 in	1.3 "	25 A	2.5 V	1	8-DIP Module, 1/16 Brick	Isolated Module	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	63 W	36 V	88 %	2250 VDC	ITE (Commercial)	Through Hole	Active Low, Enable	75 V	85 °C	-40 °C
Bel Power Solutions SSQE48T10033-NAC0G	22.8 mm	9.5 mm	33 mm	0.9 "	0.37 in	1.3 "	10 A	3.3 V	1	8-DIP Module, 1/16 Brick	Isolated Module	OCP, OTP, OVP, Remote On/Off, UVLO	33 W	36 V	90 %	2250 VDC	ITE (Commercial)	Through Hole	Active Low, Enable	75 V	85 °C	-40 °C
Bel Power Solutions SSQE48T10033-NAB0G	22.8 mm	9.5 mm	33 mm	0.9 "	0.37 in	1.3 "	10 A	3.3 V	1	8-DIP Module, 1/16 Brick	Isolated Module	OCP, OTP, OVP, Remote On/Off, UVLO	33 W	36 V	90 %	2250 VDC	ITE (Commercial)	Through Hole	Active Low, Enable	75 V	85 °C	-40 °C
Bel Power Solutions SSQE48T15033-NABNG	22.8 mm	9.5 mm	33 mm	0.9 "	0.37 in	1.3 "	15 A	3.3 V	1	8-DIP Module, 1/16 Brick	Isolated Module	OCP, OTP, OVP, Remote On/Off, UVLO	50 W	36 V	90 %	2250 VDC	ITE (Commercial)	Through Hole	Active Low, Enable	75 V	85 °C	-40 °C
