776492-2
ActiveTE Connectivity AMP Connectors

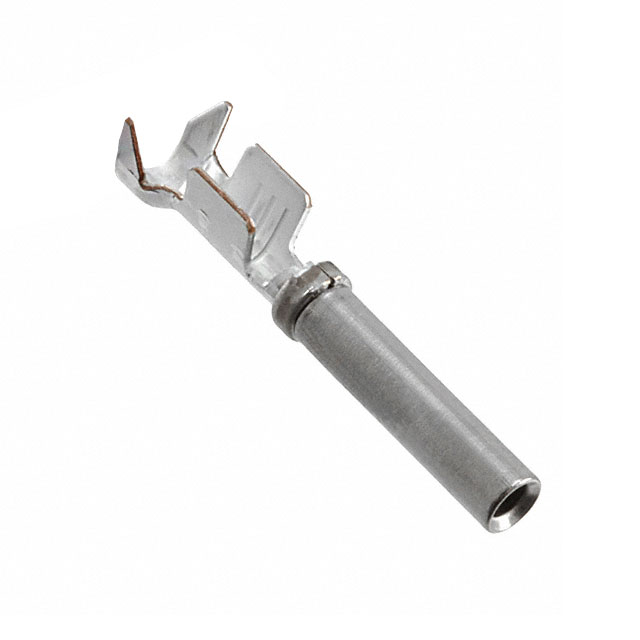

CONN SOCKET 14-18AWG CRIMP TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
776492-2
ActiveTE Connectivity AMP Connectors
CONN SOCKET 14-18AWG CRIMP TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 776492-2 | 776492 Series |
|---|---|---|
| Contact Finish | Tin | Tin, Gold |
| Contact Finish Thickness | 2.54 µm | 0.76 - 2.54 µm |
| Contact Finish Thickness | 100 µin | 30 - 100 µin |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Type | Stamped | Stamped |
| Wire Gauge [Max] | 18 AWG | 18 AWG |
| Wire Gauge [Min] | 14 AWG | 14 AWG |
776492 Series
CONN SOCKET 14-18AWG CRIMP TIN
| Part | Wire Gauge [Min] | Wire Gauge [Max] | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Pin or Socket | Contact Termination | Type |
|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 776492-2 | 14 AWG | 18 AWG | Tin | 2.54 µm | 100 µin | Socket | Crimp | Stamped |
TE Connectivity AMP Connectors 776492-1 | 14 AWG | 18 AWG | Gold | 0.76 Ám | 30 Áin | Socket | Crimp | Stamped |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.26 | |
| 10 | $ 1.18 | |||
| 25 | $ 1.13 | |||
| 50 | $ 1.12 | |||
| 100 | $ 1.01 | |||
| 250 | $ 0.98 | |||
| 500 | $ 0.89 | |||
| 1000 | $ 0.80 | |||
| Tape & Reel (TR) | 4000 | $ 0.75 | ||
| 8000 | $ 0.72 | |||
| 12000 | $ 0.68 | |||
Description
General part information
776492 Series
Socket Contact Tin 14-18 AWG Crimp Stamped
