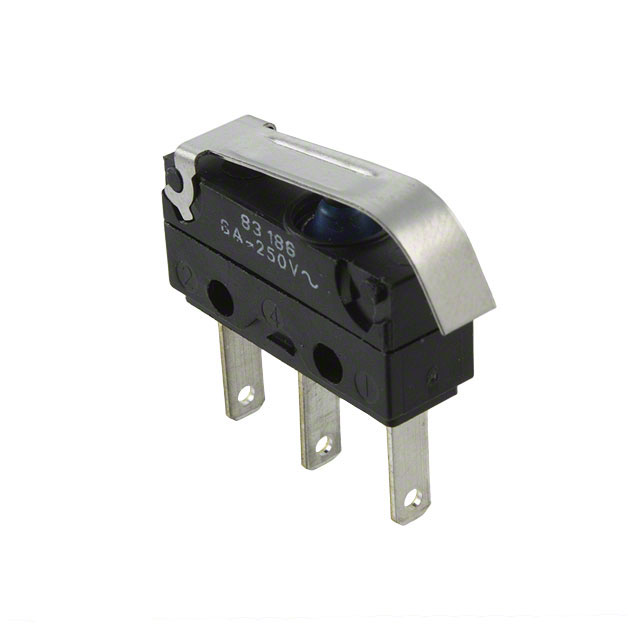

83186062

Active

Crouzet

SWITCH SNAP ACTION SPDT 6A 250V

Search across all available documentation for this part.

Active

Crouzet

SWITCH SNAP ACTION SPDT 6A 250V

Technical Specifications

Parameters and characteristics for this part

SWITCH SNAP ACTION SPDT 6A 250V

Part	Switch Function	Ingress Protection	Termination Style	Circuit	Operating Force	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Actuator Type	Operating Position [custom]	Operating Position [custom]	Mounting Type	Voltage Rating - DC	Release Force	Voltage Rating - AC	Current Rating (Amps)	Differential Travel	Differential Travel	Overtravel	Overtravel
Crouzet 83186062	On-Mom	IP67 - Dust Tight, Waterproof	Quick Connect - 0.110" (2.8mm)	SPDT	64 gf	125 °C	-40 °C	2000000 Cycles	Lever, Straight	0.437 "	11.1 mm	Chassis Mount	24 V	20 gf	250 V	6 A	0.016 "	0.4 mm	0.094 in	2.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1104	$ 7.01

General part information

Switch SPDT Chassis Mount
