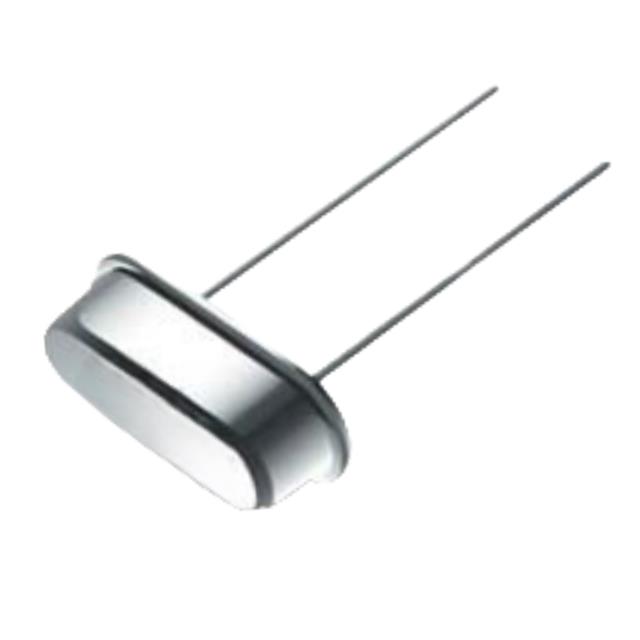

XS3M276800L216
ActiveNextGen Components
3.2768MHZ 49S 30PPM 16PF
XS3M276800L216
ActiveNextGen Components
3.2768MHZ 49S 30PPM 16PF
Description
General part information
XS3M276800L216
3.2768 MHz ±30ppm Crystal 16pF 200 Ohms HC-49/US
Technical Specifications
Parameters and characteristics for this part
| Specification | XS3M276800L216 |
|---|---|
| ESR (Equivalent Series Resistance) | 200 Ohm |
| Frequency | 3.2768 MHz |
| Frequency Stability | 50 ppm |
| Frequency Tolerance | 30 ppm |
| Height - Seated (Max) | 0.161 in |
| Load Capacitance | 16 pF |
| Mounting Type | Through Hole |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Package / Case | HC-49/US |
| Size / Dimension Length | 0.435 in |
| Size / Dimension Width | 0.183 in |
| Type | MHz Crystal |
