BC020-02-A-0200-0300-L-G

Active

GCT

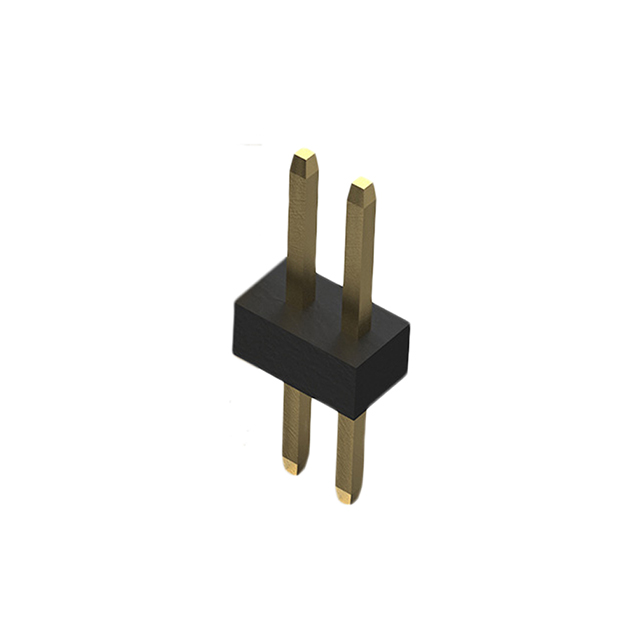

2POS 1.0MM PITCH PIN HEADER, SIL

Search across all available documentation for this part.

Active

GCT

2POS 1.0MM PITCH PIN HEADER, SIL

Technical Specifications

Parameters and characteristics for this part

Specification	BC020-02-A-0200-0300-L-G

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	0.079 in
Contact Length - Mating	2 mm
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.039 "
Insulation Height	1 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overall Contact Length [x]	6 mm
Overall Contact Length [x]	0.236 in
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	250 VAC

2POS 1.0MM PITCH PIN HEADER, SIL

Part	Overall Contact Length [x]	Overall Contact Length [x]	Insulation Height	Insulation Height	Insulation Material	Shrouding	Number of Positions Loaded	Current Rating (Amps)	Connector Type	Contact Length - Post	Contact Length - Post	Insulation Color	Contact Finish - Post	Mounting Type	Contact Material	Contact Finish Thickness - Post	Termination	Number of Positions	Pitch - Mating	Pitch - Mating	Fastening Type	Voltage Rating	Number of Rows	Contact Length - Mating	Contact Length - Mating	Contact Finish - Mating	Material Flammability Rating	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Shape
GCT BC020-02-A-0200-0300-L-G	6 mm	0.236 in	0.039 "	1 mm	Liquid Crystal Polymer (LCP)	Unshrouded	All	1 A	Header	0.118 in	3 mm	Black	Gold	Through Hole	Copper Alloy	Flash	Solder	2	0.039 in	1 mm	Push-Pull	250 VAC	1	0.079 in	2 mm	Gold	UL94 V-0	Male Pin	-40 °C	105 ░C	Flash	Square
