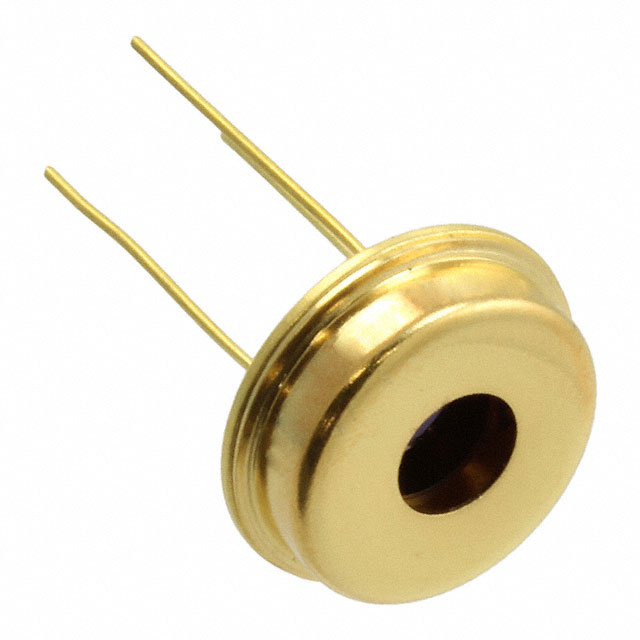

UVG20C
ActiveOpto Diode Corp
SENSOR PHOTODIODE 19MM2
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UVG20C
ActiveOpto Diode Corp
SENSOR PHOTODIODE 19MM2
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | UVG20C | UVG20 Series |
|---|---|---|
| Mounting Type | Through Hole | Through Hole |
| Operating Temperature [Max] | 80 C | 80 C |
| Operating Temperature [Min] | -20 C | -20 C |
| Response Time | 1.7 µs | 1.7 - 4 µs |
| Responsivity @ nm | 0.115 A/W | 0.115 A/W |
| Spectral Range [Max] [custom] | 1100 nm | 1100 nm |
| Spectral Range [Min] [custom] | 250 nm | 250 nm |
| Voltage - DC Reverse (Vr) (Max) [Max] | 50 V | 50 V |
UVG20 Series
SENSOR PHOTODIODE UV 24MM2
| Part | Responsivity @ nm | Response Time | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - DC Reverse (Vr) (Max) [Max] | Mounting Type | Spectral Range [Min] [custom] | Spectral Range [Max] [custom] |
|---|---|---|---|---|---|---|---|---|
Opto Diode Corp UVG20S | 0.115 A/W | 4 µs | -20 C | 80 C | 50 V | Through Hole | 250 nm | 1100 nm |
Opto Diode Corp UVG20C | 0.115 A/W | 1.7 µs | -20 C | 80 C | 50 V | Through Hole | 250 nm | 1100 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 423.04 | |
| 10 | $ 406.76 | |||
Description
General part information
UVG20 Series
Photodiode 1.7µs
