392-023-542-102
ActiveEDAC Inc.

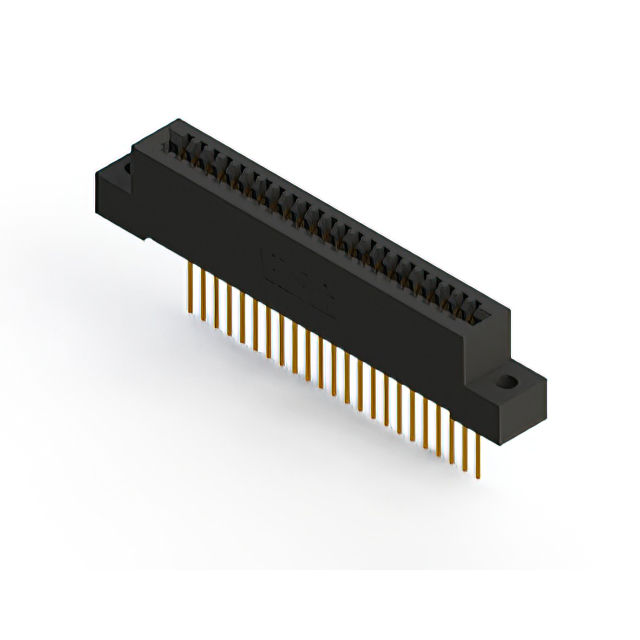

CARD EDGE CONNECTOR, 23 CONTACT(S), 1 ROW(S), FEMALE, 0.1 INCH PITCH, WIRE WRAP TERMINAL, HOLE 0.128, BLACK INSULATOR,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
392-023-542-102
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 23 CONTACT(S), 1 ROW(S), FEMALE, 0.1 INCH PITCH, WIRE WRAP TERMINAL, HOLE 0.128, BLACK INSULATOR,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 392-023-542-102 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 23 |
| Number of Positions/Bay/Row [custom] | 23 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
392-023 Series
| Part | Number of Rows | Contact Type | Mounting Type | Card Type | Read Out | Number of Positions | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Gender | Termination | Number of Positions/Bay/Row [custom] | Contact Finish Thickness | Contact Finish Thickness | Termination Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Material - Insulation | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Finish | Color | Pitch [x] | Pitch [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1 | Cantilever | Through Hole | Non Specified - Single Edge | Single | 23 | Copper Alloy | -40 °C | 105 ░C | Female | Solder | 23 | 10 Áin | 0.25 Ám | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Gold | Black | 2.54 mm | 0.1 in |
EDAC Inc. | 1 | Cantilever | Through Hole Right Angle | Non Specified - Single Edge | Single | 23 | Copper Alloy | -40 °C | 105 ░C | Female | Solder Wire Wrap | 23 | 10 Áin | 0.25 Ám | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Gold | Black | 2.54 mm | 0.1 in |
EDAC Inc. | 1 | Cantilever | Through Hole | Non Specified - Single Edge | Single | 23 | Copper Alloy | -40 °C | 105 ░C | Female | Wire Wrap | 23 | 10 Áin | 0.25 Ám | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Gold | Black | 2.54 mm | 0.1 in | |||
EDAC Inc. | 1 | Cantilever | Through Hole | Non Specified - Single Edge | Single | 23 | Copper Alloy | -40 °C | 105 ░C | Female | Wire Wrap | 23 | 10 Áin | 0.25 Ám | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Flush Mount M3 Threaded Insert Top Opening | Gold | Black | 2.54 mm | 0.1 in | ||
EDAC Inc. | 1 | Cantilever | Through Hole | Non Specified - Single Edge | Single | 23 | Copper Alloy | -40 °C | 105 ░C | Female | Wire Wrap | 23 | 10 Áin | 0.25 Ám | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | Gold | Black | 2.54 mm | 0.1 in | ||
EDAC Inc. | 1 | Cantilever | Through Hole | Non Specified - Single Edge | Single | 23 | Copper Alloy | -40 °C | 105 ░C | Female | Solder | 23 | 10 Áin | 0.25 Ám | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Gold | Black | 2.54 mm | 0.1 in | |||
EDAC Inc. | 1 | Cantilever | Through Hole | Non Specified - Single Edge | Single | 23 | Copper Alloy | -40 °C | 105 ░C | Female | Solder | 23 | 10 Áin | 0.25 Ám | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Flush Mount M3 Threaded Insert Top Opening | Gold | Black | 2.54 mm | 0.1 in | ||
EDAC Inc. | 1 | Cantilever | Through Hole | Non Specified - Single Edge | Single | 23 | Copper Alloy | -40 °C | 105 ░C | Female | Wire Wrap | 23 | 10 Áin | 0.25 Ám | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Gold | Black | 2.54 mm | 0.1 in |
EDAC Inc. | 1 | Cantilever | Through Hole | Non Specified - Single Edge | Single | 23 | Copper Alloy | -40 °C | 105 ░C | Female | Wire Wrap | 23 | 10 Áin | 0.25 Ám | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | Gold | Black | 2.54 mm | 0.1 in |
EDAC Inc. | 1 | Cantilever | Through Hole | Non Specified - Single Edge | Single | 23 | Copper Alloy | -40 °C | 105 ░C | Female | Wire Wrap | 23 | 10 Áin | 0.25 Ám | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Gold | Black | 2.54 mm | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
392-023 Series
23 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
