2900381

Active

Phoenix Contact

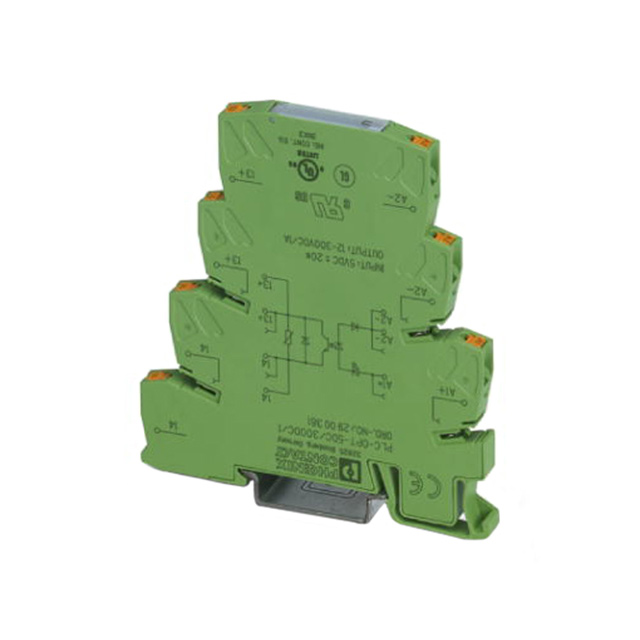

SSR RELAY SPST-NO 1A 12-300V

Search across all available documentation for this part.

Active

Phoenix Contact

SSR RELAY SPST-NO 1A 12-300V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2900381	290038 Series

Approval Agency	UKCA, CE	DNV, UKCA, CE
Load Current	1 A	1 - 3 A
Mounting Type	DIN Rail	DIN Rail
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-25 °C	-25 °C
Output Type	DC	DC
Package / Case	-	Module
Termination Style	Spring Terminal	Screw Terminal, Spring Terminal
Voltage - Input	5 VDC	5 - 230 VDC
Voltage - Load [Max]	300 V	33 - 300 V
Voltage - Load [Min]	12 V	3 - 12 V

SSR RELAY SPST-NO 1A 12-300V

Part	Package / Case	Approval Agency	Voltage - Input	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Load [Min]	Voltage - Load [Max]	Output Type	Load Current	Termination Style	Mounting Type
Phoenix Contact 2900384	Module	CE, DNV, UKCA	60 VDC	-25 °C	60 °C	12 V	300 V	DC	1 A	Screw Terminal	DIN Rail
Phoenix Contact 2900385	Module	CE, DNV, UKCA	110 VDC	-25 °C	60 °C	12 V	300 V	DC	1 A	Screw Terminal	DIN Rail
Phoenix Contact 2900389	Module	CE, DNV, UKCA	230 VAC	-25 °C	60 °C	12 V	300 V	DC	1 A	Screw Terminal	DIN Rail
Phoenix Contact 2900387	Module	CE, DNV, UKCA	220 VDC	-25 °C	60 °C	12 V	300 V	DC	1 A	Screw Terminal	DIN Rail
Phoenix Contact 2900380	Module	CE, DNV, UKCA	110 VDC	-25 °C	60 °C	3 V	33 V	DC	3 A	Screw Terminal	DIN Rail
Phoenix Contact 2900381		CE, UKCA	5 VDC	-25 °C	60 °C	12 V	300 V	DC	1 A	Spring Terminal	DIN Rail
Phoenix Contact 2900388	Module	CE, DNV, UKCA	120 VAC	-25 °C	60 °C	12 V	300 V	DC	1 A	Screw Terminal	DIN Rail
Phoenix Contact 2900383	Module	CE, DNV, UKCA	24 V	-25 °C	60 °C	12 V	300 V	DC	1 A	Screw Terminal	DIN Rail

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solid State SPST-NO (1 Form A)
