3-1609090-8

Active

TE Connectivity Corcom Filters

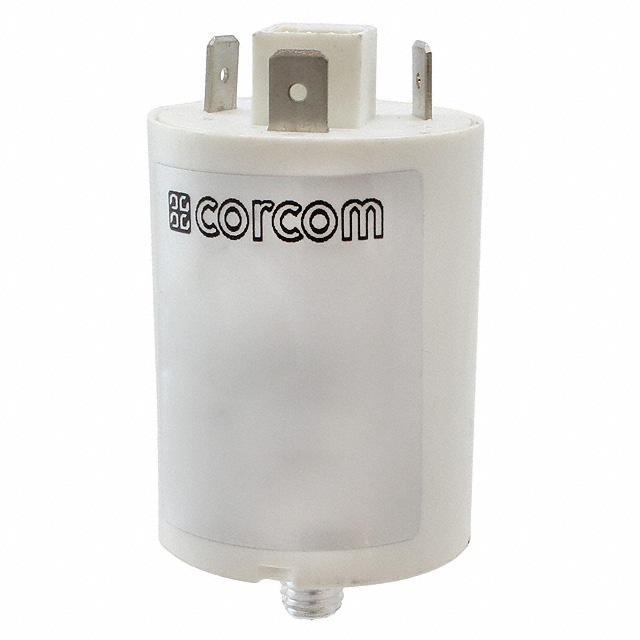

LINE FILTER 250VAC 16A CHASSIS

Search across all available documentation for this part.

Active

TE Connectivity Corcom Filters

LINE FILTER 250VAC 16A CHASSIS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3-1609090-8	1609090 Series

Applications	General Purpose	General Purpose
Approval Agency	VDE, CSA, UR	VDE, CSA, UR
Configuration	Single Stage	Single Stage
Current	16 A	16 A
Filter Type	Single Phase	Single Phase
Frequency - Operating [Max]	60 Hz	60 Hz
Frequency - Operating [Min]	50 Hz	50 Hz
Inductance	500 µH	1.2 - 500 mH
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	-10 °C	-10 °C
Termination Style	Threaded Post (M8), Quick Connect	Threaded Post (M8), Quick Connect
Voltage - Rated AC	250 V	250 V

LINE FILTER 250VAC 16A CHASSIS

Part	Filter Type	Approval Agency	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Current	Frequency - Operating [Max]	Frequency - Operating [Min]	Mounting Type	Termination Style	Inductance	Configuration	Voltage - Rated AC
TE Connectivity Corcom Filters 4-1609090-2	Single Phase	CSA, UR, VDE	General Purpose	-10 °C	40 °C	16 A	60 Hz	50 Hz	Chassis Mount	Quick Connect, Threaded Post (M8)	1.2 mH	Single Stage	250 V
TE Connectivity Corcom Filters 3-1609090-9	Single Phase	CSA, UR, VDE	General Purpose	-10 °C	40 °C	16 A	60 Hz	50 Hz	Chassis Mount	Quick Connect, Threaded Post (M8)	1.2 mH	Single Stage	250 V
TE Connectivity Corcom Filters 4-1609090-3	Single Phase	CSA, UR, VDE	General Purpose	-10 °C	40 °C	16 A	60 Hz	50 Hz	Chassis Mount	Quick Connect, Threaded Post (M8)	2 mH	Single Stage	250 V
TE Connectivity Corcom Filters 3-1609090-8	Single Phase	CSA, UR, VDE	General Purpose	-10 °C	40 °C	16 A	60 Hz	50 Hz	Chassis Mount	Quick Connect, Threaded Post (M8)	500 µH	Single Stage	250 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	216	$ 7.97

General part information

Single Phase EMC/EMI Line Filter 16 A 250V 50/60Hz Single Stage Quick Connect, Threaded Post (M8)
