5282-9PG-3DC
ActiveConxall/Switchcraft

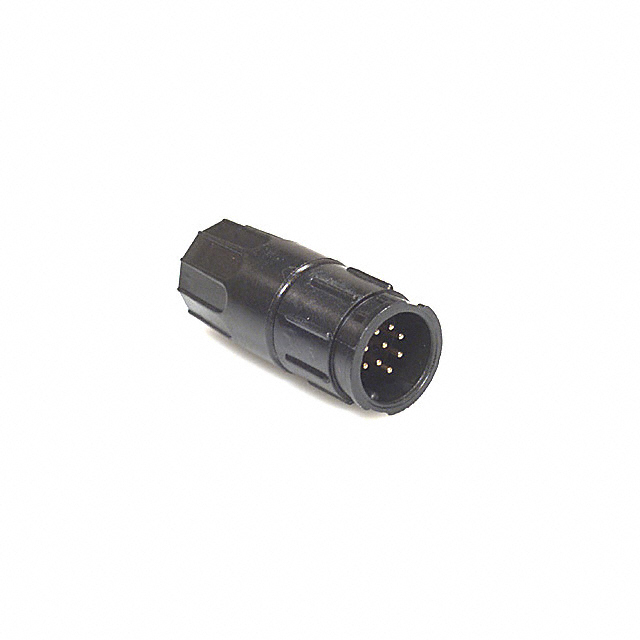

CONN RCPT MALE 9P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
5282-9PG-3DC
ActiveConxall/Switchcraft
CONN RCPT MALE 9P GOLD SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5282-9PG-3DC | 5282-9PG Series |
|---|---|---|
| Backshell Material, Plating | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Cable Opening | - | 0.15 - 0.17 in |
| Cable Opening | - | 3.81 - 4.32 mm |
| Cable Opening | - | 0.24 - 0.28 in |
| Cable Opening | - | 6.86 - 7.37 mm |
| Cable Opening | - | 6.1 - 7.11 mm |
| Cable Opening | - | 0.27 - 0.29 in |
| Cable Opening | - | 4.57 mm |
| Cable Opening | - | 0.18 in |
| Cable Opening | - | 0.2 in |
| Cable Opening | - | 5.08 mm |
| Color | Black | Black |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | 5.6 A | 5.6 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Backshell | Cable Clamp, Backshell |
| Ingress Protection | Weathertight | Weathertight |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 9 | 9 |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 600 V | 600 V |
5282-9PG Series
CONN RCPT MALE 9P GOLD SLDR CUP
| Part | Orientation | Shielding | Contact Finish - Mating | Contact Material | Number of Positions | Voltage Rating | Backshell Material, Plating | Current Rating (Amps) | Fastening Type | Cable Opening [custom] | Cable Opening [custom] | Connector Type | Ingress Protection | Features | Operating Temperature [Min] | Operating Temperature [Max] | Color | Primary Material | Mounting Type | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 5282-9PG-515 | Keyed | Unshielded | Gold | Brass | 9 | 600 V | Nylon, Polyamide (PA) | 5.6 A | Bayonet Lock | 0.15 in, 0.17 in | 3.81 mm, 4.32 mm | Male Pins, Receptacle | Weathertight | Backshell, Cable Clamp | -40 °C | 115 °C | Black | Plastic | Free Hanging (In-Line) | ||||||||
Conxall/Switchcraft 5282-9PG-524 | Keyed | Unshielded | Gold | Brass | 9 | 600 V | Nylon, Polyamide (PA) | 5.6 A | Bayonet Lock | Male Pins, Receptacle | Weathertight | Backshell, Cable Clamp | -40 °C | 115 °C | Black | Plastic | Free Hanging (In-Line) | 0.24 in | 6.86 mm | 6.1 mm | 0.27 in | ||||||
Conxall/Switchcraft 5282-9PG-328 | Keyed | Unshielded | Gold | Brass | 9 | 600 V | Nylon, Polyamide (PA) | 5.6 A | Bayonet Lock | Male Pins, Receptacle | Weathertight | Backshell | -40 °C | 115 °C | Black | Plastic | Free Hanging (In-Line) | 0.28 in | 7.37 mm | 7.11 mm | 0.29 in | ||||||
Conxall/Switchcraft 5282-9PG-528 | Keyed | Unshielded | Gold | Brass | 9 | 600 V | Nylon, Polyamide (PA) | 5.6 A | Bayonet Lock | Male Pins, Receptacle | Weathertight | Backshell, Cable Clamp | -40 °C | 115 °C | Black | Plastic | Free Hanging (In-Line) | 0.28 in | 7.37 mm | 7.11 mm | 0.29 in | ||||||
Conxall/Switchcraft 5282-9PG-324 | Keyed | Unshielded | Gold | Brass | 9 | 600 V | Nylon, Polyamide (PA) | 5.6 A | Bayonet Lock | Male Pins, Receptacle | Weathertight | Backshell | -40 °C | 115 °C | Black | Plastic | Free Hanging (In-Line) | 0.24 in | 6.86 mm | 6.1 mm | 0.27 in | ||||||
Conxall/Switchcraft 5282-9PG-3DC | Keyed | Unshielded | Gold | Brass | 9 | 600 V | Nylon, Polyamide (PA) | 5.6 A | Bayonet Lock | Male Pins, Receptacle | Weathertight | Backshell | -40 °C | 115 °C | Black | Plastic | Free Hanging (In-Line) | ||||||||||
Conxall/Switchcraft 5282-9PG-518 | Keyed | Unshielded | Gold | Brass | 9 | 600 V | Nylon, Polyamide (PA) | 5.6 A | Bayonet Lock | Male Pins, Receptacle | Weathertight | Backshell, Cable Clamp | -40 °C | 115 °C | Black | Plastic | Free Hanging (In-Line) | 4.57 mm | 0.18 in | 0.2 in | 5.08 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 12.45 | |
Description
General part information
5282-9PG Series
9 Position Circular Connector Receptacle, Male Pins Solder Cup
