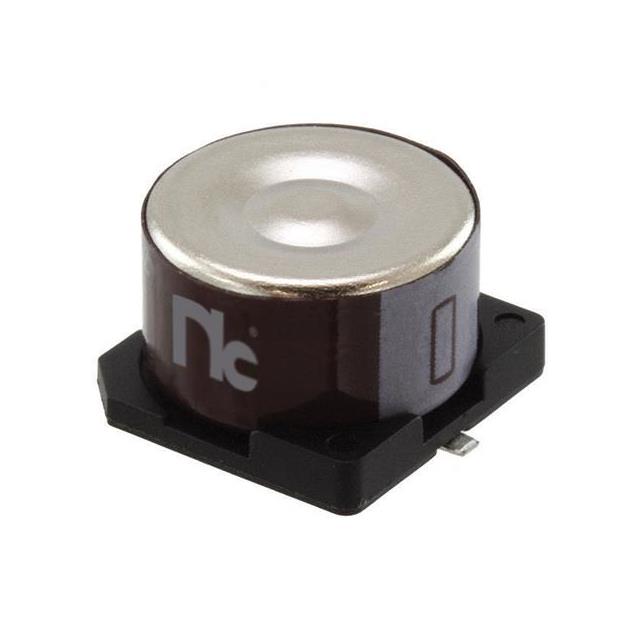

NEZVL224Z5.5V12.5X10.5TRF
ActiveNIC Components Corp
CAP SMT12.5X10.50.22F5.5VDC
NEZVL224Z5.5V12.5X10.5TRF
ActiveNIC Components Corp
CAP SMT12.5X10.50.22F5.5VDC
Description
General part information
NEZVL224Z5.5V12.5X10.5TRF
220 mF (EDLC) Supercapacitor 5.5 V 45Ohm 1000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | NEZVL224Z5.5V12.5X10.5TRF |
|---|---|
| Capacitance | 220 mF |
| ESR (Equivalent Series Resistance) | 45 Ohm |
| Height - Seated (Max) | 0.413 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Size / Dimension Diameter | 0.492 in |
| Termination | SMD (SMT) Tabs |
| Tolerance (Negative) | 20 % |
| Tolerance (Positive) | 80 % |
| Voltage - Rated | 5.5 V |
