12600-S-12

Active

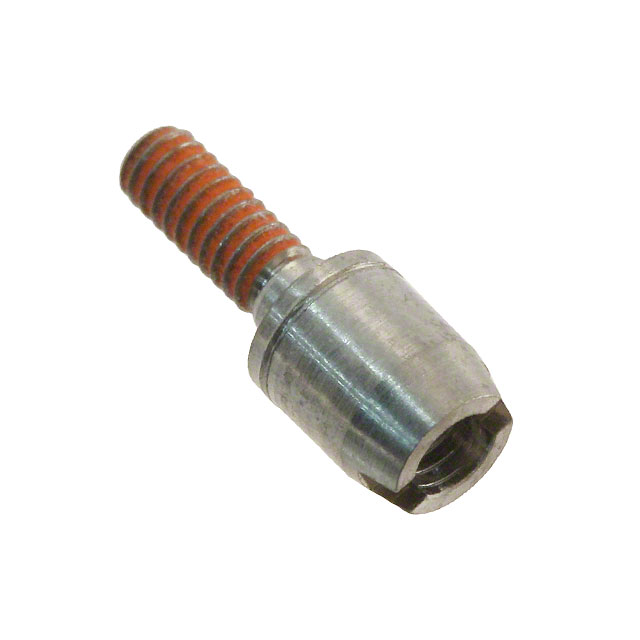

THUMBSCREW LOCK SDR SHELL 0.18"

Search across all available documentation for this part.

Active

THUMBSCREW LOCK SDR SHELL 0.18"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	12600-S-12	12600 Series

Accessory Type	Jackscrew Socket, Slotted	Jackscrew Socket, Slotted
Drive Type	-	Phillips
For Use With/Related Products	D-Sub Connectors, SDR	D-Sub Connectors, SDR
Length - Below Head [x]	5.84 mm	5.33 - 5.84 mm
Length - Below Head [x]	0.23 in	0.21 - 0.23 in
Length - Overall	-	0.28 in
Length - Overall	-	7.11 mm
Length - Threaded Portion Below Head	4.57 mm	4.57 mm
Length - Threaded Portion Below Head [x]	0.18 in	0.18 in
Plating	-	Zinc
Screw Head Type	-	Pan Head
Thread Size	M2 Socket, M2 Screw	M2 Socket, M2 Screw, M2
Type	-	Machine Screw

THUMBSCREW LOCK SDR SHELL 0.18"

Part	For Use With/Related Products	Length - Threaded Portion Below Head [x]	Length - Threaded Portion Below Head	Accessory Type	Length - Below Head [x]	Length - Below Head [x]	Thread Size	Type	Length - Overall [x]	Length - Overall [x]	Drive Type	Plating	Screw Head Type
3M 12600-S-12	D-Sub Connectors, SDR	0.18 in	4.57 mm	Jackscrew Socket, Slotted	5.84 mm	0.23 in	M2 Screw, M2 Socket
3M 12600-S-00	D-Sub Connectors, SDR			Jackscrew Socket, Slotted			M2 Screw, M2 Socket
3M 12600-S-M2X55					5.59 mm	0.22 in	M2	Machine Screw	0.28 in	7.11 mm	Phillips	Zinc	Pan Head
3M 12600-S-08	D-Sub Connectors, SDR	0.18 in	4.57 mm	Jackscrew Socket, Slotted	5.33 mm	0.21 in	M2 Screw, M2 Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jackscrew Socket, Slotted For D-Sub Connectors, SDR
