M3AGK-1060K

Active

IDC CABLE - MSC10K/MC10F/MCS10K

Deep-Dive with AI

Search across all available documentation for this part.

Documents1700 Series 3yyy-0002 Card-Edge +1

M3AGK-1060K

Active

IDC CABLE - MSC10K/MC10F/MCS10K

Deep-Dive with AI

Documents1700 Series 3yyy-0002 Card-Edge +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.62
		10	$ 12.78
		25	$ 11.56
		50	$ 10.73
		100	$ 9.99
		250	$ 9.10
		500	$ 8.51
		1000	$ 7.97

Description

General part information

M3AGK Series

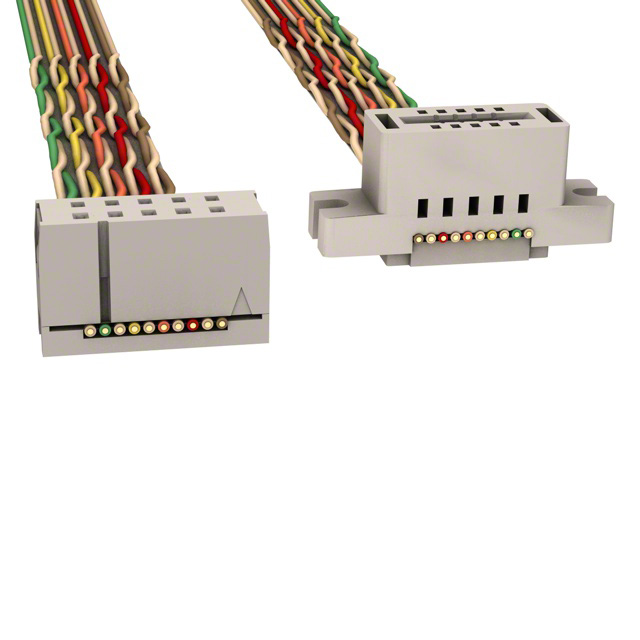

10 Position Cable Assembly Rectangular Socket to Card Edge 5.00' (1.52m)

Documents

Technical documentation and resources

1700 Series

Datasheet

3yyy-0002 Card-Edge

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M3AGK-1060K	M3AGK Series

Cable Termination	IDC	IDC
Color	Multiple, Twisted Pair (Flat)	Ribbon, Multiple, Multiple, Twisted Pair (Flat)
Connector Type	Socket to Card Edge	Socket to Card Edge
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Features	Flange	Flange
Length	1.52 m	1.52 - 508 mm
Length	5 '	1.67 - 5 ft
Length	-	6 "
Length	-	0.5 '
Length	-	1.02 - 914.4 mm
Length	-	1.5 - 3.34 ft
Number of Positions	10	10 - 50
Number of Positions	-	16
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded

M3AGK Series

IDC CABLE - MSC16K/MC16G/MCS16K

Part	Length	Length	Length	Pitch - Connector	Pitch - Connector	Connector Type	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Contact Finish	Pitch - Cable	Pitch - Cable	Shielding	Features	Number of Rows	Number of Positions	Length [x]	Length [x]	Color	Length
3M M3AGK-1606J	152.4 mm	6 "	0.5 '	0.1 in	2.54 mm	Socket to Card Edge	IDC	0.76 Ám	30 Áin	16	Gold	0.05 "	1.27 mm	Unshielded	Flange	2
3M M3AGK-5006J	152.4 mm	6 "	0.5 '	0.1 in	2.54 mm	Socket to Card Edge	IDC	0.76 Ám	30 Áin		Gold	0.05 "	1.27 mm	Unshielded	Flange	2	50
3M M3AGK-3418R				0.1 in	2.54 mm	Socket to Card Edge	IDC	0.76 Ám	30 Áin		Gold	0.05 "	1.27 mm	Unshielded	Flange	2	34	457.2 mm	1.5 ft	Multiple, Ribbon
3M M3AGK-1636J				0.1 in	2.54 mm	Socket to Card Edge	IDC	0.76 Ám	30 Áin	16	Gold	0.05 "	1.27 mm	Unshielded	Flange	2		914.4 mm	3 ft
3M M3AGK-3406R	152.4 mm	6 "	0.5 '	0.1 in	2.54 mm	Socket to Card Edge	IDC	0.76 Ám	30 Áin		Gold	0.05 "	1.27 mm	Unshielded	Flange	2	34			Multiple, Ribbon
3M M3AGK-1020K	508 mm			0.1 in	2.54 mm	Socket to Card Edge	IDC	0.76 Ám	30 Áin		Gold	0.05 "	1.27 mm	Unshielded	Flange	2	10			Multiple, Twisted Pair (Flat)	1.67 ft
3M M3AGK-5040K				0.1 in	2.54 mm	Socket to Card Edge	IDC	0.76 Ám	30 Áin		Gold	0.05 "	1.27 mm	Unshielded	Flange	2	50	1.02 m	3.34 ft	Multiple, Twisted Pair (Flat)
3M M3AGK-3420K	508 mm			0.1 in	2.54 mm	Socket to Card Edge	IDC	0.76 Ám	30 Áin		Gold	0.05 "	1.27 mm	Unshielded	Flange	2	34			Multiple, Twisted Pair (Flat)	1.67 ft
3M M3AGK-3440K				0.1 in	2.54 mm	Socket to Card Edge	IDC	0.76 Ám	30 Áin		Gold	0.05 "	1.27 mm	Unshielded	Flange	2	34	1.02 m	3.34 ft	Multiple, Twisted Pair (Flat)
3M M3AGK-3436R				0.1 in	2.54 mm	Socket to Card Edge	IDC	0.76 Ám	30 Áin		Gold	0.05 "	1.27 mm	Unshielded	Flange	2	34	914.4 mm	3 ft	Multiple, Ribbon
