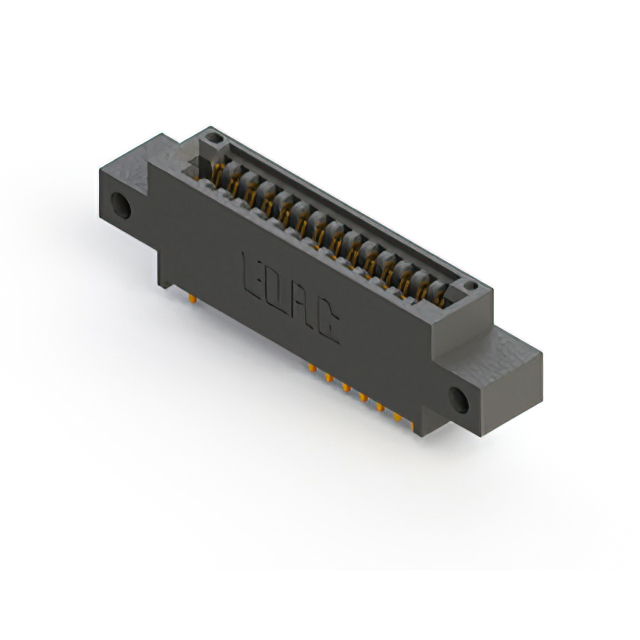

395-028-523-812
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 28POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 395-028-523-812 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Side Mount Opening, Unthreaded |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 28 |
| Number of Positions/Bay/Row [custom] | 14 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
395-028 Series
...
| Part | Mounting Type | Material - Insulation | Card Type | Pitch [x] | Pitch [x] | Read Out | Termination Rows | Flange Feature | Contact Material | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Termination | Color | Number of Positions/Bay/Row [custom] | Features | Gender | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Through Hole | Polyester Thermoplastic | Non Specified - Single Edge | 2.54 mm | 0.1 in | Single | 1 | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | 1 | 10 Áin | 0.25 Ám | Gold | Solder | Black | 28 | Card Guides | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 28 | -40 °C | 105 ░C | Cantilever | ||||
EDAC Inc. | Through Hole Right Angle | Polyester Thermoplastic | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Dual | 2 | Flush Mount Top Opening Unthreaded | Copper Alloy | 2 | 10 Áin | 0.25 Ám | Gold | Solder | Black | 14 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 28 | -40 °C | 105 ░C | Cantilever | 3.25 mm | 0.128 " | |||
EDAC Inc. | Through Hole | Polyester Thermoplastic | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Dual | 2 | Copper Alloy | 2 | 10 Áin | 0.25 Ám | Gold | Solder | Black | 14 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 28 | -40 °C | 105 ░C | Cantilever | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Through Hole Right Angle | Polyester Thermoplastic | Non Specified - Single Edge | 2.54 mm | 0.1 in | Single | 1 | Copper Alloy | 1 | 10 Áin | 0.25 Ám | Gold | Solder | Black | 28 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 28 | -40 °C | 105 ░C | Cantilever | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Board Edge Straddle Mount | Polyester Thermoplastic | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Dual | 2 | M3 Threaded Insert Top Mount Opening | Copper Alloy | 2 | 10 Áin | 0.25 Ám | Gold | Solder Eyelet(s) | Black | 14 | Card Extender | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 28 | -40 °C | 105 ░C | Cantilever | ||||
EDAC Inc. | Through Hole | Polyester Thermoplastic | Non Specified - Single Edge | 2.54 mm | 0.1 in | Single | 1 | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | 1 | 10 Áin | 0.25 Ám | Gold | Wire Wrap | Black | 28 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 28 | -40 °C | 105 ░C | Cantilever | |||||
EDAC Inc. | Through Hole | Polyester Thermoplastic | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Dual | 2 | Side Mount Opening Unthreaded | Copper Alloy | 2 | 10 Áin | 0.25 Ám | Gold | Solder | Black | 14 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 28 | -40 °C | 105 ░C | Cantilever | 3.25 mm | 0.128 in | |||
EDAC Inc. | Board Edge Straddle Mount | Polyester Thermoplastic | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Dual | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | 2 | 10 Áin | 0.25 Ám | Gold | Solder Eyelet(s) | Black | 14 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 28 | -40 °C | 105 ░C | Cantilever | |||||
EDAC Inc. | Through Hole | Polyester Thermoplastic | Non Specified - Single Edge | 2.54 mm | 0.1 in | Single | 1 | Floating Bobbin Top Mount Opening | Copper Alloy | 1 | 10 Áin | 0.25 Ám | Gold | Wire Wrap | Black | 28 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 28 | -40 °C | 105 ░C | Cantilever | 2.95 mm | 0.116 in | |||
EDAC Inc. | Through Hole Right Angle | Polyester Thermoplastic | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Dual | 2 | M3 Threaded Insert Top Mount Opening | Copper Alloy | 2 | 10 Áin | 0.25 Ám | Gold | Solder | Black | 14 | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 28 | -40 °C | 105 ░C | Cantilever |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 9.69 | |
Description
General part information
395-028 Series
28 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
