G063215000
ActiveExcelitas Technologies

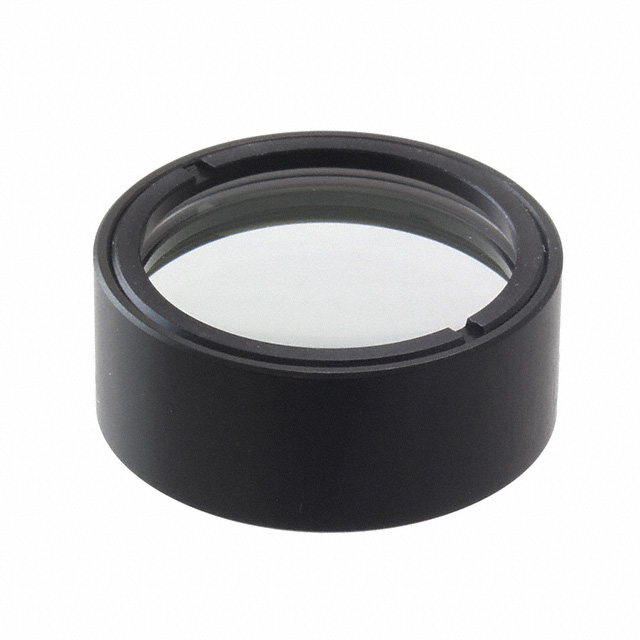

LENS ACHR VIS 120MM
G063215000
ActiveExcelitas Technologies
LENS ACHR VIS 120MM
Description
General part information
G063215000
LENS ACHR VIS 120MM
Technical Specifications
Parameters and characteristics for this part
| Specification | G063215000 |
|---|---|
| Clear Aperture | 24 mm |
| Focal Length | 120 mm |
| Mounting Size | 30 mm |
| Optic Center Thickness | 7 mm |
| Optic Diameter | 25.4 mm |
| Optic Edge Thickness | 5.4 mm |
| Type | Achromatic Lens |
| Wavelength (Max) | 700 nm |
| Wavelength (Min) | 450 nm |
