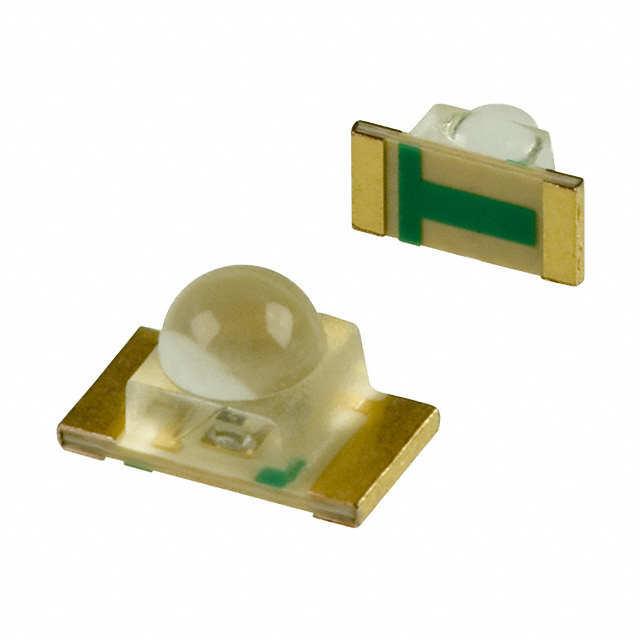

FY1105W-TR
ActiveStanley Electric Co
LED YELLOW CLEAR 3216 SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FY1105W-TR
ActiveStanley Electric Co
LED YELLOW CLEAR 3216 SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FY1105W-TR |
|---|---|
| Color | Yellow |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 2.05 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 1.6 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 180 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 1.6 mm |
| Supplier Device Package | 3216 Type |
| Viewing Angle | 50 ° |
| Voltage - Forward (Vf) (Typ) | 1.9 V |
| Wavelength - Dominant | 590 nm |
| Wavelength - Peak | 592 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.67 | |
| 10 | $ 0.40 | |||
| 100 | $ 0.26 | |||
| 500 | $ 0.20 | |||
| 1000 | $ 0.19 | |||
| Digi-Reel® | 1 | $ 0.67 | ||
| 10 | $ 0.40 | |||
| 100 | $ 0.26 | |||
| 500 | $ 0.20 | |||
| 1000 | $ 0.19 | |||
| Tape & Reel (TR) | 2000 | $ 0.17 | ||
| 4000 | $ 0.16 | |||
| 6000 | $ 0.16 | |||
| 10000 | $ 0.15 | |||
| 14000 | $ 0.15 | |||
| 20000 | $ 0.14 | |||
| 50000 | $ 0.14 | |||
Description
General part information
FY1105 Series
Yellow 590nm LED Indication - Discrete 1.9V 1206 (3216 Metric)
