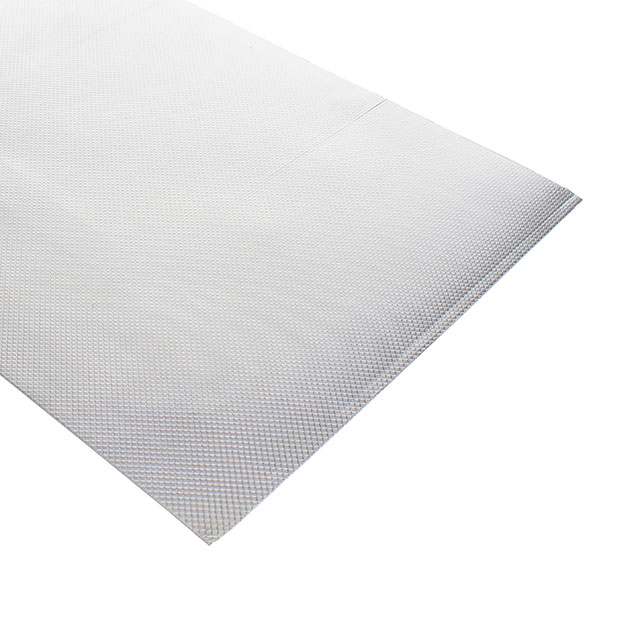

1267-7.7"X10"

Active

TAPE EMI SHD SILV 7.70"X10"

Search across all available documentation for this part.

Active

TAPE EMI SHD SILV 7.70"X10"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1267-7.7"X10"	1267 Series

Adhesive	Acrylic	Single Sided, Non-Conductive, Acrylic
Backing, Carrier	Aluminum Foil	Aluminum Foil
Color	Silver	Silver
Length	-	16.5 - 91.44 m
Length	-	54 ft
Length [x]	10 in	10 - 36 in
Length [x]	25.4 cm	25.4 cm
Material	-	Embossed Aluminum Foil
Shelf Life	60 Months	60 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Storage/Refrigeration Temperature [Max]	27 °C	27 °C
Storage/Refrigeration Temperature [Max]	81 °F	81 °F
Storage/Refrigeration Temperature [Min]	10 °C	10 °C
Storage/Refrigeration Temperature [Min]	10 °C	10 °C
Tape Type	EMI Shielding	EMI Shielding
Thickness	0.0067 "	0.0067 "
Thickness	0.17 mm	0.17 mm
Thickness	6.7 mils	6.7 mils
Thickness - Adhesive	0.119 mm	0.119 mm
Thickness - Adhesive	0.0047 "	0.0047 "
Thickness - Adhesive	4.7 mils	4.7 mils
Thickness - Backing, Carrier	0.002 "	0.002 "
Thickness - Backing, Carrier	0.051 mm	0.051 mm
Thickness - Backing, Carrier	2 mils	2 mils
Thickness - Overall	-	0.13 mm
Thickness - Overall	-	0.005 in
Type	-	Shielding Tape, Shielding Sheet
Width	-	0.75 in
Width	-	19.1 - 25.4 mm
Width [x]	195.58 mm	195.58 mm
Width [x]	7.7 in	1 - 7.7 in

RF EMI SHIELDING TAPE 54'X0.75"

Part	Type	Thickness - Overall [z]	Thickness - Overall [z]	Shelf Life	Adhesive	Length	Length	Shelf Life Start	Material	Width	Width	Length [x]	Length [x]	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Width [x]	Width [x]	Backing, Carrier	Color	Thickness	Thickness	Thickness	Tape Type	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Min]
3M 1267-3/4"X18YD	Shielding Tape	0.13 mm	0.005 in	60 Months	Non-Conductive, Single Sided	16.5 m	54 ft	Date of Manufacture	Embossed Aluminum Foil	0.75 in	19.1 mm
3M 1267-1/2"X18YD	Shielding Tape	0.13 mm	0.005 in		Non-Conductive, Single Sided	16.5 m	54 ft		Embossed Aluminum Foil
3M 1267-7.7"X10"				60 Months	Acrylic			Date of Manufacture				10 in	25.4 cm	0.119 mm	0.0047 "	4.7 mils	0.002 "	0.051 mm	2 mils	195.58 mm	7.7 in	Aluminum Foil	Silver	0.0067 "	0.17 mm	6.7 mils	EMI Shielding	27 °C	81 °F	10 °C	10 °C
3M 1267 X 1"	Shielding Sheet, Shielding Tape	0.13 mm	0.005 in		Non-Conductive, Single Sided	16.5 m, 91.44 cm	54 ft		Embossed Aluminum Foil		25.4 mm	36 "									1 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 25.19

General part information

EMI Shielding Tape Acrylic Adhesive Silver 7.70" (195.58mm) X 10.00" (254.000mm)
