Description
General part information

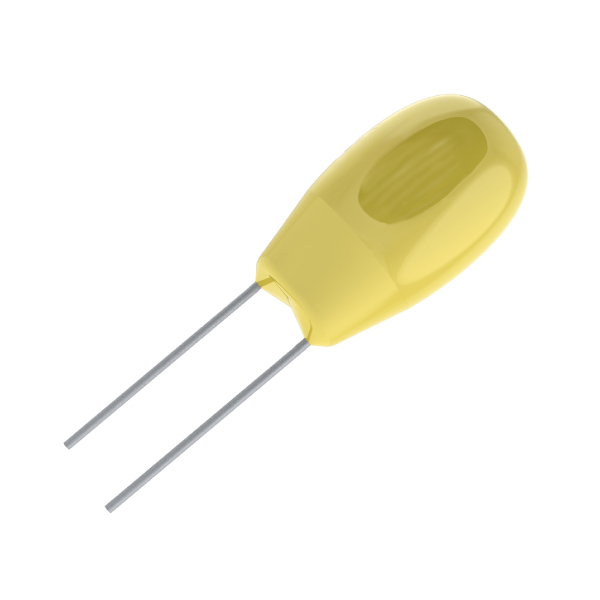

T350E225M050AT7301
2.2 µF Conformal Coated Tantalum Capacitors 50 V Radial, Disc 3.5Ohm @ 100kHz
Technical Specifications
Parameters and characteristics for this part
| Specification | T350E225M050AT7301 |
|---|---|
| Capacitance | 2.2 µF |
| ESR (Equivalent Series Resistance) | 3.5 Ohm |
| Features | General Purpose |
| Height - Seated (Max) | 0.35 in |
| Lead Spacing | 0.1 in |
| Manufacturer Size Code | E |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Disc, Radial |
| Size / Dimension Diameter | 0.217 in |
| Tolerance | 20 % |
| Type | Conformal Coated |
| Voltage - Rated | 50 V |
