T4061220003-005
ActiveTE Connectivity AMP Connectors

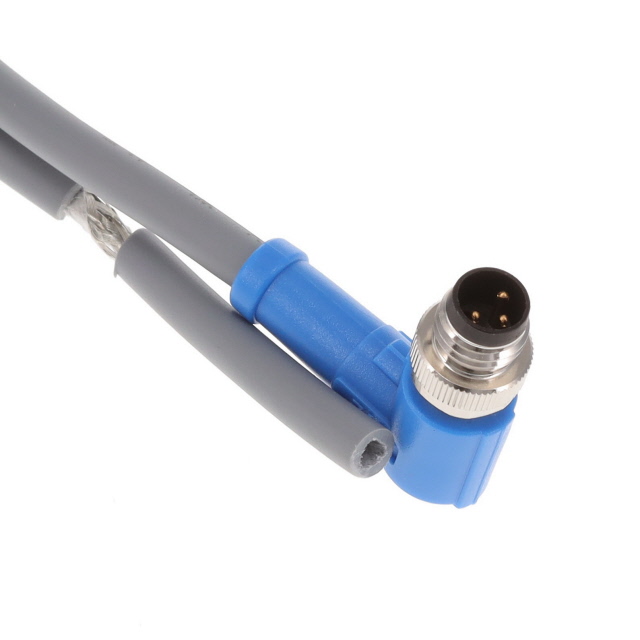

CBL CIRC 3POS MALE TO WIRE 16.4'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T4061220003-005 | T40612 Series |
|---|---|---|
| 1st Connector Gender | Male Pins | Male Pins |
| 1st Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 3 | 3 - 4 |
| 1st Connector Number of Positions Loaded | All | All |
| 1st Connector Orientation | A | A |
| 1st Connector Shell Size - Insert | M8 | M8 |
| 1st Connector Type | Receptacle, Right Angle | Receptacle, Right Angle |
| 2nd Connector Type | Wire Leads | Wire Leads |
| Assembly Configuration | Standard | Standard |
| Cable Material | Polyurethane (PUR) | Polyurethane (PUR), Polyvinyl Chloride (PVC) |
| Cable Type | Round | Round |
| Color | Gray | Gray, Black |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Length | - | 1 - 500 m |
| Length | - | 1.64 - 3.28 ft |
| Shielding | Shielded | Shielded |
| Usage | Industrial Environments | Industrial Environments |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 21.84 | |
| 10 | $ 18.02 | |||
| 25 | $ 16.75 | |||
| 50 | $ 15.83 | |||
| 100 | $ 15.48 | |||
| 250 | $ 15.37 | |||
| 500 | $ 14.79 | |||
T40612 Series
CBL 3POS RCPT RA TO WIRE 3.28'
| Part | 1st Connector Gender | Length [x] | Length [x] | 1st Connector Shell Size - Insert | 1st Connector Orientation | 2nd Connector Type | 1st Connector Number of Positions Loaded | 1st Connector Mounting Type | 1st Connector Type | Shielding | Usage | Assembly Configuration | 1st Connector Number of Positions | Color | Cable Type | Cable Material | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4061220003-002 | Male Pins | 1 m | 3.28 ft | M8 | A | Wire Leads | All | Free Hanging (In-Line) | Receptacle, Right Angle | Shielded | Industrial Environments | Standard | 3 | Gray | Round | Polyurethane (PUR) | IP67 - Dust Tight, Waterproof |
TE Connectivity AMP Connectors T4061220004-005 | Male Pins | M8 | A | Wire Leads | All | Free Hanging (In-Line) | Receptacle, Right Angle | Shielded | Industrial Environments | Standard | 4 | Gray | Round | Polyurethane (PUR) | IP67 - Dust Tight, Waterproof | ||
TE Connectivity AMP Connectors T4061220003-005 | Male Pins | M8 | A | Wire Leads | All | Free Hanging (In-Line) | Receptacle, Right Angle | Shielded | Industrial Environments | Standard | 3 | Gray | Round | Polyurethane (PUR) | IP67 - Dust Tight, Waterproof | ||
TE Connectivity AMP Connectors T4061210003-001 | Male Pins | 500 mm | 1.64 ft | M8 | A | Wire Leads | All | Free Hanging (In-Line) | Receptacle, Right Angle | Shielded | Industrial Environments | Standard | 3 | Black | Round | Polyvinyl Chloride (PVC) | IP67 - Dust Tight, Waterproof |
Description
General part information
T40612 Series
Circular Cable Assembly Shielded 16.40' (5.00m)
