1326030-6
ActiveTE Connectivity AMP Connectors

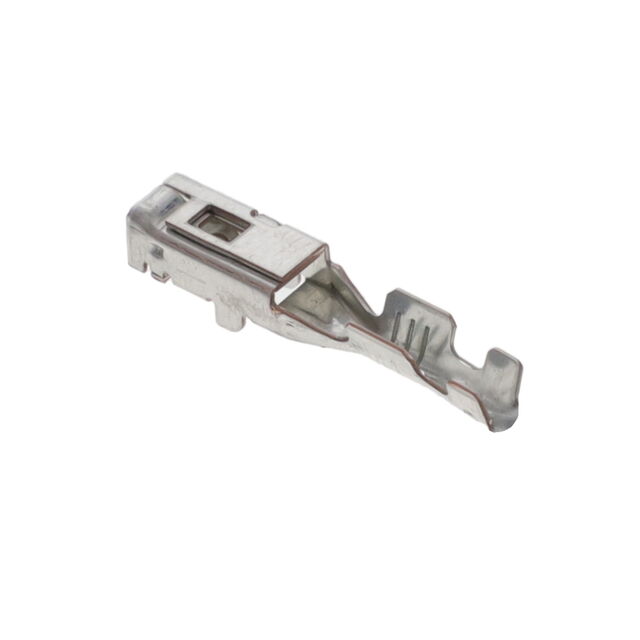

CONN SOCKET 18-20AWG CRIMP TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1326030-6
ActiveTE Connectivity AMP Connectors
CONN SOCKET 18-20AWG CRIMP TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1326030-6 | 1326030 Series |
|---|---|---|
| Contact Finish | Tin | Tin |
| Contact Finish Thickness | 31.5 µin | 31.5 µin |
| Contact Finish Thickness | 0.8 µm | 0.8 µm |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Type | Power | Power |
| Wire Gauge | - | 22 AWG |
| Wire Gauge [Max] | 20 AWG | 20 AWG |
| Wire Gauge [Min] | 17.5 AWG | 17.5 AWG |
1326030 Series
CONN SOCKET 22AWG CRIMP TIN
| Part | Contact Termination | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Pin or Socket | Type | Wire Gauge | Wire Gauge [Min] | Wire Gauge [Max] |
|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1326030-5 | Crimp | Tin | 31.5 µin | 0.8 µm | Socket | Power | 22 AWG | ||
TE Connectivity AMP Connectors 1326030-6 | Crimp | Tin | 31.5 µin | 0.8 µm | Socket | Power | 17.5 AWG | 20 AWG | |
TE Connectivity AMP Connectors 1326030-2 | Crimp | Tin | 31.5 µin | 0.8 µm | Socket | Power | 17.5 AWG | 20 AWG | |
TE Connectivity AMP Connectors 1326030-7 | Crimp | Tin | 31.5 µin | 0.8 µm | Socket | Power | |||
TE Connectivity AMP Connectors 1326030-1 | Crimp | Tin | 31.5 µin | 0.8 µm | Socket | Power | 22 AWG | ||
TE Connectivity AMP Connectors 1-1326030-1 | Crimp | Tin | 31.5 µin | 0.8 µm | Socket | Power |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.35 | |
| 10 | $ 0.32 | |||
| 25 | $ 0.32 | |||
| 50 | $ 0.31 | |||
| 100 | $ 0.27 | |||
| 250 | $ 0.24 | |||
| 500 | $ 0.23 | |||
| 1000 | $ 0.20 | |||
| Tape & Reel (TR) | 3000 | $ 0.20 | ||
| 6000 | $ 0.18 | |||
| 15000 | $ 0.16 | |||
Description
General part information
1326030 Series
Socket Contact Tin 18-20 AWG Crimp Power
