1050524-1
ActiveTE Connectivity AMP Connectors

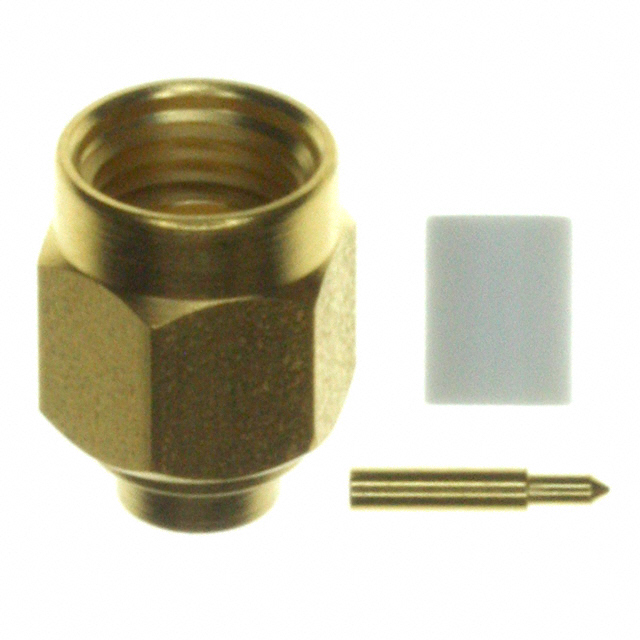

CONN SMA PLUG STR 50 OHM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1050524-1
ActiveTE Connectivity AMP Connectors
CONN SMA PLUG STR 50 OHM SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1050524-1 |
|---|---|
| Body Finish | Gold |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 18 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
| Voltage Rating | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.30 | |
| 10 | $ 8.11 | |||
| 100 | $ 7.21 | |||
| 1000 | $ 6.02 | |||
1050524 Series
CONN SMA PLUG STR 50 OHM SOLDER
| Part | Connector Style | Mounting Type | Dielectric Material | Body Material | Shield Termination | Frequency - Max [Max] | Body Finish | Center Contact Plating | Impedance | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Contact Termination | Voltage Rating | Mating Cycles | Number of Ports | Housing Color | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1050524-1 | SMA | Free Hanging (In-Line) | Polytetrafluoroethylene (PTFE) | Stainless Steel | Solder | 18 GHz | Gold | Gold | 50 Ohms | 125 °C | -65 ░C | Male Pin, Plug | Solder | 500 V | 500 | 1 | Gold | Beryllium Copper |
Description
General part information
1050524 Series
SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
