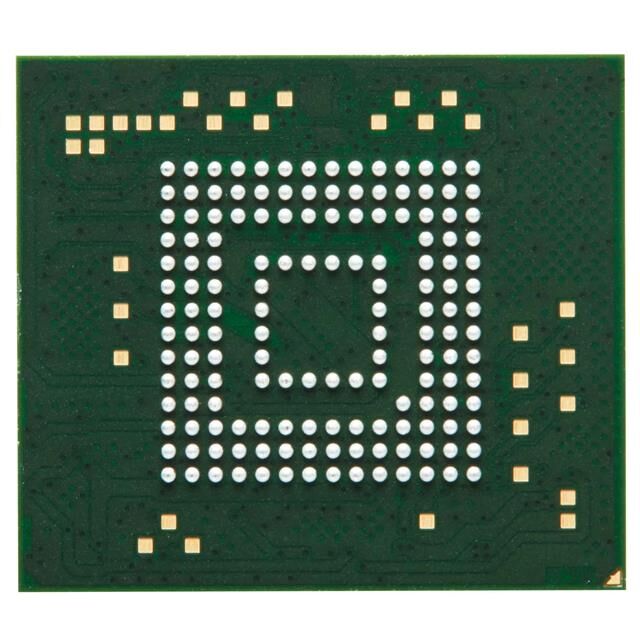

EMMC64G-IY29-5B101

Active

Kingston Technology

TLC NAND FLASH SERIAL E-MMC 3.3V 512G-BIT 512G/128G/64G X 1/4-BIT/8-BIT 153-PIN FBGA

Search across all available documentation for this part.

Active

Kingston Technology

TLC NAND FLASH SERIAL E-MMC 3.3V 512G-BIT 512G/128G/64G X 1/4-BIT/8-BIT 153-PIN FBGA

Technical Specifications

Parameters and characteristics commom to parts in this series

IC FLASH 512GBIT EMMC 153FBGA

Part	Memory Interface	Memory Format	Mounting Type	Technology	Package / Case	Supplier Device Package [x]	Supplier Device Package	Supplier Device Package [y]	Operating Temperature [Min]	Operating Temperature [Max]	Memory Organization	Memory Type	Memory Size	Voltage - Supply	Voltage - Supply [Min]	Voltage - Supply [Max]	Clock Frequency
Kingston Technology EMMC64G-TY29-5B101	eMMC	FLASH	Surface Mount	FLASH - NAND (TLC)	153-BGA	11.5	153-FBGA	13	-25 °C	85 °C	64 G	Non-Volatile	64 MB
Kingston Technology EMMC64G-TY29-5B111	eMMC	FLASH	Surface Mount	FLASH - NAND (TLC)	153-WFBGA	11.5	153-WFBGA	13	-25 °C	85 °C	64 G	Non-Volatile	64 MB	1.8 V, 3.3 V
Kingston Technology EMMC64G-TY29-5B102	eMMC_5.1	FLASH	Surface Mount	FLASH - NAND (TLC)	153-WFBGA	11.5	153-FBGA	13	-25 °C	85 °C	64 G	Non-Volatile	64 MB		2.7 V	3.6 V	200 MHz
Kingston Technology EMMC64G-IY29-5B101	eMMC_5.1	FLASH	Surface Mount	FLASH - NAND (TLC)	153-BGA	11.5	153-FBGA	13	-40 °C	85 °C	64 G	Non-Volatile	64 MB
Kingston Technology EMMC64G-IY29-5B102	eMMC_5.1	FLASH	Surface Mount	FLASH - NAND (TLC)	153-WFBGA	11.5	153-FBGA	13	-40 °C	85 °C	64 G	Non-Volatile	64 MB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

FLASH - NAND (TLC) Memory IC 512Gbit eMMC_5.1 153-FBGA (11.5x13)
