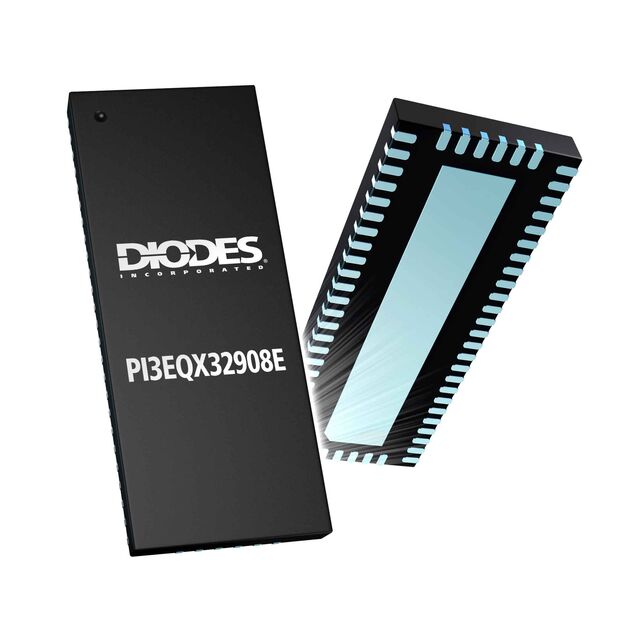

PI3EQX32908EZRIEX

Active

Diodes Inc

32GBPS, 8-CHANNEL PCIE 5.0 LINEAR REDRIVER WITH I2C MASTER MODE FOR EXTERNAL EEPROM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Recommended Soldering Techniques +1

PI3EQX32908EZRIEX

Active

Diodes Inc

32GBPS, 8-CHANNEL PCIE 5.0 LINEAR REDRIVER WITH I2C MASTER MODE FOR EXTERNAL EEPROM

Deep-Dive with AI

DocumentsDatasheet Recommended Soldering Techniques +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PI3EQX32908EZRIEX

Applications	PCI Express®
Data Rate (Max)	32 Gbps
Input	CML
Mounting Type	Surface Mount
Number of Channels	8
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	CML
Package / Case	62-WFQFN Exposed Pad
Signal Conditioning	Input Equalization
Supplier Device Package	62-WQFN
Supplier Device Package [x]	3.5
Supplier Device Package [y]	9
Type	ReDriver, Buffer
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	3 V

PI3EQX32908E Series

32Gbps, 8-Channel PCIe 5.0 Linear ReDriver with I2C Master Mode for External EEPROM

Part	Mounting Type	Signal Conditioning	Voltage - Supply [Max]	Voltage - Supply [Min]	Data Rate (Max)	Input	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Type	Package / Case	Number of Channels	Output	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package
Diodes Inc PI3EQX32908EZRIEX	Surface Mount	Input Equalization	3.6 V	3 V	32 Gbps	CML	PCI Express®	85 °C	-40 °C	Buffer ReDriver	62-WFQFN Exposed Pad	8	CML	9	3.5	62-WQFN

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 16.97
		10	$ 15.59
		25	$ 14.95
		100	$ 13.17
		250	$ 12.52
		500	$ 11.72
	Digi-Reel®	1	$ 16.97
		10	$ 15.59
		25	$ 14.95
		100	$ 13.17
		250	$ 12.52
		500	$ 11.72
	Tape & Reel (TR)	3500	$ 10.00

Description

General part information

PI3EQX32908E Series

The PI3EQX32908E is a multi-data rate, 8-differential channel ReDriver™. The device provides programmable linear equalization, output swing and flat gain, through I2C control interface, and is optimized for performance over a variety of physical media with reduced Inter-Symbol Interference.
