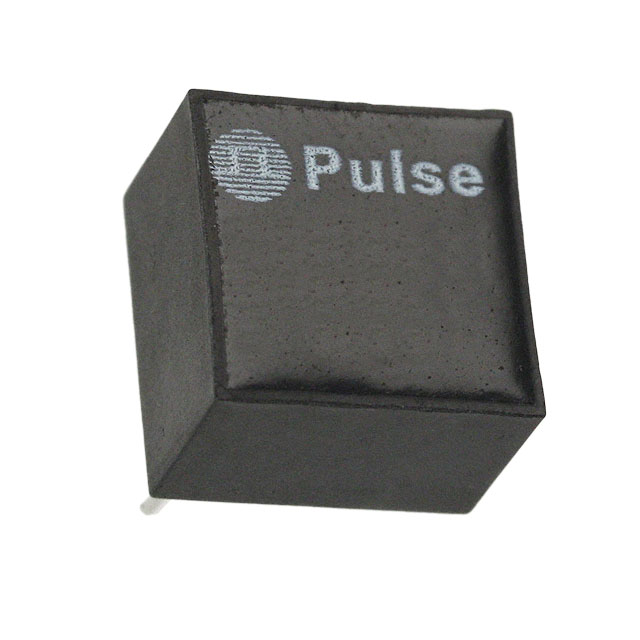

PE-53822NL
ActivePulse Electronics
FIXED IND 54UH 1A 200 MOHM TH
PE-53822NL
ActivePulse Electronics
FIXED IND 54UH 1A 200 MOHM TH
Description
General part information
PE-53822NL
54 µH Shielded Toroidal Inductor 1 A 200mOhm Radial, Vertical - Corner Terminals
Technical Specifications
Parameters and characteristics for this part
| Specification | PE-53822NL |
|---|---|
| Current Rating | 1 A |
| DC Resistance (DCR) | 200 mOhm |
| Height - Seated (Max) | 0.375 in |
| Inductance | 54 µH |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Vertical - Corner Terminals, Radial |
| Shielding | Shielded |
| Size / Dimension Length | 0.495 in |
| Size / Dimension Width | 0.495 in |
| Tolerance | 20 % |
| Type | Toroidal |
