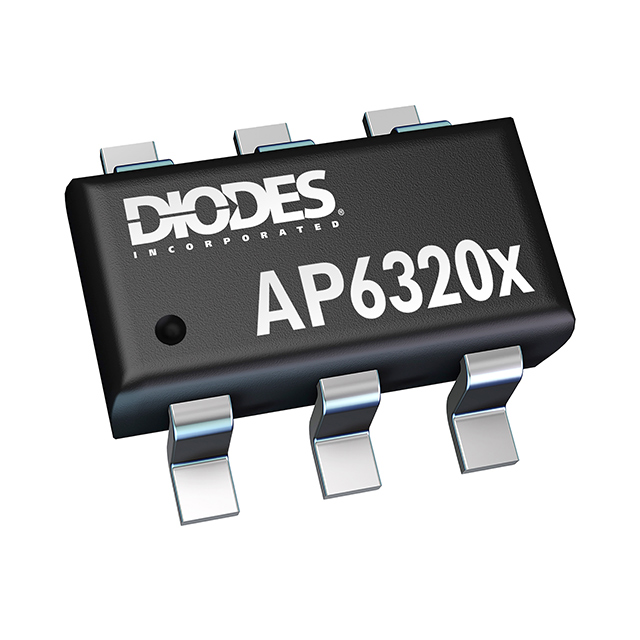

AP63203WU-7
ActiveDiodes Incorporated
IC REG BUCK 3.3V 2A TSOT23-6
Deep-Dive with AI
Search across all available documentation for this part.
AP63203WU-7
ActiveDiodes Incorporated
IC REG BUCK 3.3V 2A TSOT23-6
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | AP63203WU-7 | AP63203 Series |
|---|---|---|
| Board Type | - | Fully Populated |
| Current - Output | 2 A | 2 A |
| Frequency - Switching | 1.1 MHz | 1.1 MHz |
| Function | Step-Down | Step-Down |
| Main Purpose | - | DC/DC, Step Down |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Configuration | Positive | Positive |
| Output Type | 27.03 °C/W | 27.03 °C/W |
| Outputs and Type | - | Non-Isolated |
| Outputs and Type | - | 1 |
| Package / Case | TSOT-23-6, SOT-23-6 Thin | TSOT-23-6, SOT-23-6 Thin |
| Supplied Contents | - | Board(s) |
| Supplier Device Package | TSOT-23-6 | TSOT-23-6 |
| Synchronous Rectifier | True | True |
| Topology | Buck | Buck |
| Utilized IC / Part | - | AP63203 |
| Voltage - Input | - | 3.8 V |
| Voltage - Input | - | 32 VDC |
| Voltage - Input (Max) [Max] | 32 V | 32 V |
| Voltage - Input (Min) [Min] | 3.8 V | 3.8 V |
| Voltage - Output | - | 3.3 V |
| Voltage - Output (Min/Fixed) | 3.3 V | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.87 | |
| 10 | $ 0.76 | |||
| 25 | $ 0.72 | |||
| 100 | $ 0.58 | |||
| 250 | $ 0.54 | |||
| 500 | $ 0.46 | |||
| 1000 | $ 0.37 | |||
| Digi-Reel® | 1 | $ 0.87 | ||
| 10 | $ 0.76 | |||
| 25 | $ 0.72 | |||
| 100 | $ 0.58 | |||
| 250 | $ 0.54 | |||
| 500 | $ 0.46 | |||
| 1000 | $ 0.37 | |||
| Tape & Reel (TR) | 3000 | $ 0.33 | ||
| 6000 | $ 0.31 | |||
| 15000 | $ 0.30 | |||
| 30000 | $ 0.29 | |||
AP63203 Series
EVAL BOARD FOR AP63203
| Part | Frequency - Switching | Utilized IC / Part | Outputs and Type | Outputs and Type | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Output | Supplied Contents | Current - Output | Main Purpose | Board Type | Voltage - Input (Min) [Min] | Topology | Package / Case | Voltage - Output (Min/Fixed) | Operating Temperature [Max] | Operating Temperature [Min] | Synchronous Rectifier | Supplier Device Package | Voltage - Input (Max) [Max] | Output Configuration | Number of Outputs | Output Type | Mounting Type | Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Diodes Incorporated AP63203WU-EVM | 1.1 MHz | AP63203 | Non-Isolated | 1 | 3.8 V | 32 VDC | 3.3 V | Board(s) | 2 A | DC/DC, Step Down | Fully Populated | ||||||||||||||
Diodes Incorporated AP63203WU-7 | 1.1 MHz | 2 A | 3.8 V | Buck | SOT-23-6 Thin, TSOT-23-6 | 3.3 V | 85 °C | -40 °C | TSOT-23-6 | 32 V | Positive | 1 | 27.03 °C/W | Surface Mount | Step-Down |
Description
General part information
AP63203 Series
Buck Switching Regulator IC Positive Fixed 3.3V 1 Output 2A SOT-23-6 Thin, TSOT-23-6
