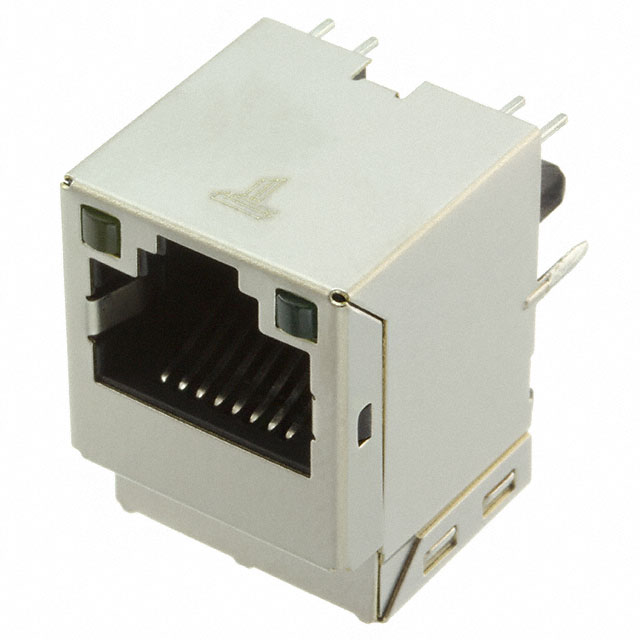

1840419-2

Active

Bel Fuse Inc.

CONN JACK 1PORT PCB

Search across all available documentation for this part.

Active

Bel Fuse Inc.

CONN JACK 1PORT PCB

Technical Specifications

Parameters and characteristics for this part

CONN JACK 1PORT PCB

Part	Shield Material	Contact Finish Thickness	Contact Finish Thickness	Number of Ports	Contact Finish	Tab Direction	Connector Type	Features	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	LED Color	Contact Material	Height Above Board [z]	Height Above Board [z]	Shielding	Number of Rows	Orientation	Termination	Mounting Type	Applications
Bel Fuse Inc. 1840419-2	Brass	50 µin	1.27 µm	1	Gold	User Selectable	RJ45	Board Guide	70 °C	0 °C	Thermoplastic	Green, Yellow	Phosphor Bronze	16.51 mm	0.65 "	Shielded	1	Vertical	Solder	Through Hole	10/100 Base-T, AutoMDIX

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 Port RJ45 Through Hole 10/100 Base-T, AutoMDIX
