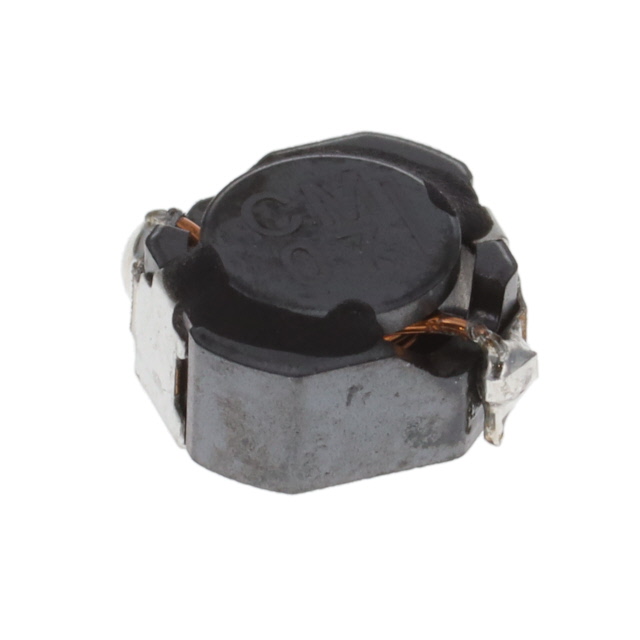

CDRH50D28BT150NP-2R2NC
ActiveSumida America Components Inc.
FIXED IND 2.2UH 3.2A 26MOHM SMD
CDRH50D28BT150NP-2R2NC
ActiveSumida America Components Inc.
FIXED IND 2.2UH 3.2A 26MOHM SMD
Description
General part information
CDRH50D28BT150NP-2R2NC
2.2 µH Shielded Inductor 3.2 A 26mOhm Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | CDRH50D28BT150NP-2R2NC |
|---|---|
| Current - Saturation (Isat) | 3.5 A |
| Current Rating | 3.2 A |
| DC Resistance (DCR) | 26 mOhm |
| Height - Seated (Max) | 0.118 in |
| Inductance | 2.2 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension Length | 0.209 in |
| Size / Dimension Width | 0.197 in |
| Tolerance | 30 % |
