BB2X12-8882/HIGHGEL

Unknown

3M (TC)

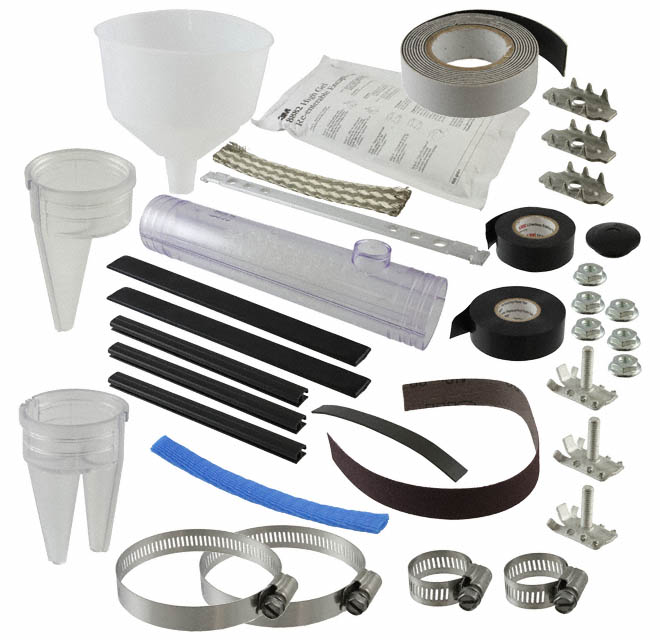

WIRE SPLICE BURIED CLOSURE SPLICE KIT

Search across all available documentation for this part.

Unknown

3M (TC)

WIRE SPLICE BURIED CLOSURE SPLICE KIT

Technical Specifications

Parameters and characteristics for this part

Specification	BB2X12-8882/HIGHGEL

Diameter - Inside [diameter]	2 in
Diameter - Inside [diameter]	50.8 mm
Features	High Gel
Length - Overall [x]	406.4 mm
Length - Overall [x]	16 in
Number of Cable Pairs	25 Pairs, 50 Pairs
Sheath Opening	5 in
Sheath Opening	127 mm
Type	Buried Closure Splice Kit, Re-Enterable

Part	Length - Overall [x]	Length - Overall [x]	Features	Type	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Number of Cable Pairs	Sheath Opening	Sheath Opening
3M (TC) BB2X12-8882/HIGHGEL	406.4 mm	16 in	High Gel	Buried Closure Splice Kit Re-Enterable	2 in	50.8 mm	25 Pairs 50 Pairs	5 in	127 mm
3M (TC) BB2X12-SB/2SC-LHS	406.4 mm	16 in		Buried Closure Splice Kit Re-Enterable	2 in	50.8 mm	25 Pairs 50 Pairs	5 in	127 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 14.78
Digikey	Box	1	$ 126.61

General part information

Wire Splice Buried Closure Splice Kit, Re-Enterable 16.00" (406.4mm) 25 Pairs @ 22 AWG, 50 Pairs @ 24 AWG

Technical documentation and resources
