RV10-6Q

Active

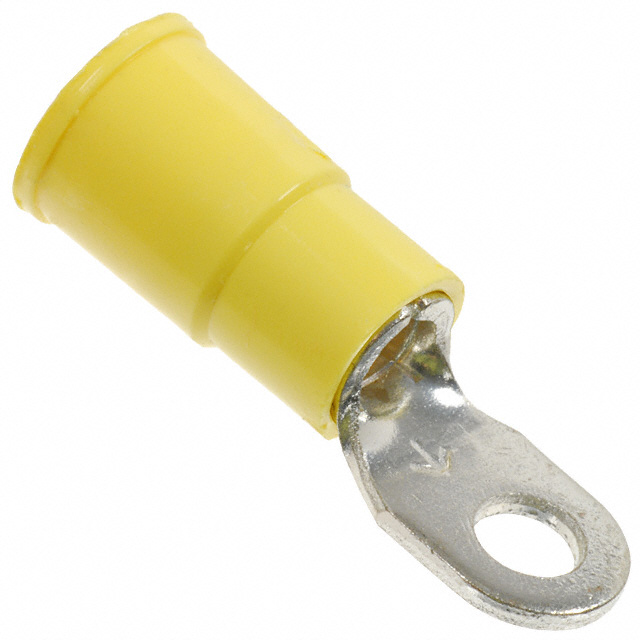

RING TONGUE TERMINAL, M3.5, #6, 10 AWG, HIGHLAND SERIES, YELLOW

Search across all available documentation for this part.

Active

RING TONGUE TERMINAL, M3.5, #6, 10 AWG, HIGHLAND SERIES, YELLOW

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN RING CIRC 10-12AWG #1/4

Part	Contact Material	Color	Termination	Contact Finish	Mounting Type	Width - Outer Edges [y]	Width - Outer Edges	Features	Insulation Diameter	Insulation Diameter	Length - Overall [x]	Length - Overall [x]	Insulation	Thickness	Thickness	Wire Gauge [Max]	Wire Gauge [Min]	Terminal Type	Material - Insulation	Stud/Tab Size	Length - Overall	Width - Outer Edges [x]	Width - Outer Edges [x]	Stud/Tab Size
3M RV10-14L	Copper, ETP	Yellow	Crimp	Tin	Free Hanging (In-Line)	0.53 in	13.46 mm	Butted Seam	0.25 "	6.35 mm	1.26 in	32 mm	Insulated	0.04 in	1.02 mm	12 AWG	10 AWG	Circular	Vinyl	0.25 Stud
3M RV10-6Q	Copper, ETP	Yellow	Crimp	Tin	Free Hanging (In-Line)			Butted Seam	0.25 "	6.35 mm	1.03 in		Insulated	0.04 in	1.02 mm	12 AWG	10 AWG	Circular	Vinyl	6 Stud	26.16 mm	9.65 mm	0.38 "
3M RV10-38Q	Copper, ETP	Yellow	Crimp	Tin	Free Hanging (In-Line)	0.53 in	13.46 mm	Butted Seam	0.25 "	6.35 mm	1.26 in	32 mm	Insulated	0.04 in	1.02 mm	12 AWG	10 AWG	Circular	Vinyl					3/8 Stud
3M RV10-10L	Copper, ETP	Yellow	Crimp	Tin	Free Hanging (In-Line)			Butted Seam	0.25 "	6.35 mm	1.03 in		Insulated	0.04 in	1.02 mm	12 AWG	10 AWG	Circular	Vinyl	10 Stud	26.16 mm	9.65 mm	0.38 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Ring Terminal Connector 6 Stud Circular 10-12 AWG Crimp
