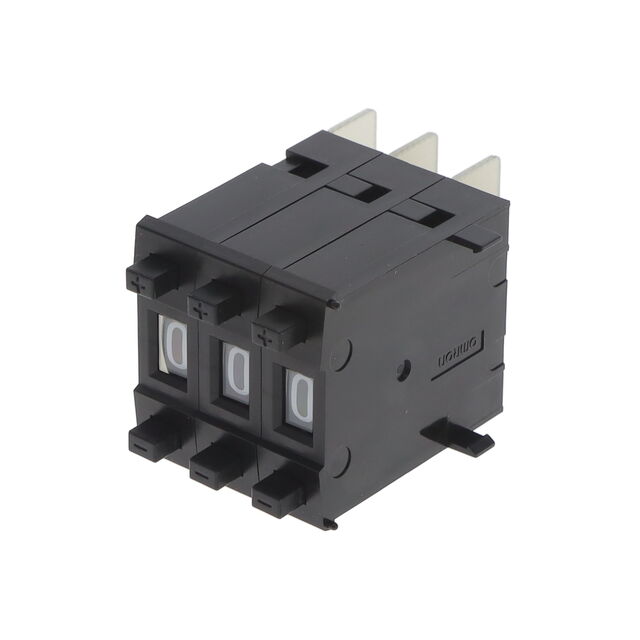

A7PH-206-1

Active

Omron Electronics Inc-EMC Div

SWITCH THUMB BCD 0.15A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes Datasheet

A7PH-206-1

Active

Omron Electronics Inc-EMC Div

SWITCH THUMB BCD 0.15A 125V

Deep-Dive with AI

DocumentsHow to Read Date Codes Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 32.12
		10	$ 29.88
		50	$ 26.59
		100	$ 23.90
		250	$ 22.41

Description

General part information

A7P Series

Thumbwheel Switch BCD 0.15A @ 125VAC/28VDC Panel Mount, Snap-In

Documents

Technical documentation and resources

How to Read Date Codes

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A7PH-206-1	A7P Series

Accessory Type	-	Spacer
Actuator Type	Pushwheel	Pushwheel
Color	Black	Black, Light Gray
Contact Rating @ Voltage	0.15 A	0.15 A
Contact Rating @ Voltage	-	0.1 - 50 VDC
Depth Behind Flange	43 mm	43 - 55 mm
Display Characters - Height [z]	0.268 in	0.157 - 0.268 in
Display Characters - Height [z]	6.8 mm	4 - 6.8 mm
Electrical Life	1000000 Cycles	50000 - 1000000 Cycles
End Caps	Sold Separately	Sold Separately
Features	-	Internal Stoppers, Diode
For Use With/Related Products	-	A7PS Series, A7PH
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Number of Sections	1	1
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-10 °C	-10 °C
Output Code	BCD	BCD, SPDT, Decimal, Hexadecimal
Read Out	-	+/-
Read Out	-	F, 9
Read Out	-	0, A
Read Out [Max]	9	9
Read Out [Min]	0	0
Section Width [x]	0.394 in	0.394 in
Section Width [x]	10 mm	10 mm
Termination Style	Solder Pad, Card Edge	Solder Pad, Card Edge, Card Edge/Solder Pad with Component Mounting

A7P Series

SWITCH THUMB BCD 0.15A 125V

Part	Termination Style	Output Code	Color	Number of Sections	Actuator Type	Electrical Life	Depth Behind Flange	Mounting Type	Section Width [x]	Section Width [x]	End Caps	Operating Temperature [Min]	Operating Temperature [Max]	Read Out [Min]	Read Out [Max]	Contact Rating @ Voltage	Display Characters - Height [z]	Display Characters - Height [z]	Features	Contact Rating @ Voltage [x]	Read Out	Accessory Type	For Use With/Related Products	Read Out [Max]	Read Out [Min]
Omron Electronics Inc-EMC Div A7PH-206-1	Card Edge, Solder Pad	BCD	Black	1	Pushwheel	1000000 Cycles	43 mm	Panel Mount, Snap-In	0.394 in	10 mm	Sold Separately	-10 °C	65 °C	0	9	0.15 A	0.268 in	6.8 mm
Omron Electronics Inc-EMC Div A7PS-206-S04-1	Card Edge, Solder Pad	BCD	Black	1	Pushwheel	50000 Cycles	43 mm	Panel Mount, Snap-In	0.394 in	10 mm	Sold Separately	-10 °C	65 °C	0	9		0.268 in	6.8 mm	Internal Stoppers	0.1 A, 28 VDC, 50 VAC
Omron Electronics Inc-EMC Div A7PH-206-PM-1	Card Edge, Solder Pad	SPDT	Black	1	Pushwheel	1000000 Cycles	43 mm	Panel Mount, Snap-In	0.394 in	10 mm	Sold Separately	-10 °C	65 °C			0.15 A	0.268 in	6.8 mm			+/-
Omron Electronics Inc-EMC Div A7PS-203-1	Card Edge, Solder Pad	Decimal	Black	1	Pushwheel	50000 Cycles	43 mm	Panel Mount, Snap-In	0.394 in	10 mm	Sold Separately	-10 °C	65 °C	0	9		0.268 in	6.8 mm		0.1 A, 28 VDC, 50 VAC
Omron Electronics Inc-EMC Div A7PS-207-D1	Card Edge/Solder Pad with Component Mounting	BCD	Black	1	Pushwheel	50000 Cycles	55 mm	Panel Mount, Snap-In	0.394 in	10 mm	Sold Separately	-10 °C	65 °C	0	9		0.268 in	6.8 mm	Diode	0.1 A, 28 VDC, 50 VAC
Omron Electronics Inc-EMC Div A7PH-203-1	Card Edge, Solder Pad	Decimal	Black	1	Pushwheel	1000000 Cycles	43 mm	Panel Mount, Snap-In	0.394 in	10 mm	Sold Separately	-10 °C	65 °C	0	9	0.15 A	0.268 in	6.8 mm
Omron Electronics Inc-EMC Div A7P-PU-1																						Spacer	A7PH, A7PS Series
Omron Electronics Inc-EMC Div A7PH-254-1	Card Edge, Solder Pad	Hexadecimal	Black	1	Pushwheel	1000000 Cycles	43 mm	Panel Mount, Snap-In	0.394 in	10 mm	Sold Separately	-10 °C	65 °C			0.15 A	0.157 in	4 mm						9, F	0, A
Omron Electronics Inc-EMC Div A7PS-207	Card Edge/Solder Pad with Component Mounting	BCD	Light Gray	1	Pushwheel	50000 Cycles	55 mm	Panel Mount, Snap-In	0.394 in	10 mm	Sold Separately	-10 °C	65 °C	0	9		0.268 in	6.8 mm		0.1 A, 28 VDC, 50 VAC
Omron Electronics Inc-EMC Div A7PH-206-PM	Card Edge, Solder Pad	SPDT	Light Gray	1	Pushwheel	1000000 Cycles	43 mm	Panel Mount, Snap-In	0.394 in	10 mm	Sold Separately	-10 °C	65 °C			0.15 A	0.268 in	6.8 mm			+/-
