6282-4PG-519

Active

Conxall/Switchcraft

CONN PLUG MALE 4P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

6282-4PG-519

Active

Conxall/Switchcraft

CONN PLUG MALE 4P GOLD SLDR CUP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6282-4PG-519	6282-4PG Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	5.84 mm
Cable Opening	-	0.13 - 0.15 in
Cable Opening	-	3.3 - 3.81 mm
Cable Opening [Max] [diameter]	0.21 in	0.21 - 0.23 in
Cable Opening [Max] [diameter]	5.33 mm	5.33 mm
Cable Opening [Min] [diameter]	0.19 in	0.19 - 0.21 in
Cable Opening [Min] [diameter]	4.83 mm	4.83 - 5.33 mm
Color	Black	Black
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	4	4
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 V	600 V

6282-4PG Series

CONN PLUG MALE 4P GOLD SLDR CUP

Part	Fastening Type	Contact Material	Shielding	Backshell Material, Plating	Connector Type	Voltage Rating	Applications	Color	Number of Positions	Current Rating (Amps)	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Ingress Protection	Features	Contact Finish - Mating	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Orientation	Cable Opening [Max] [diameter]	Cable Opening [custom]	Cable Opening [custom]
Conxall/Switchcraft 6282-4PG-321	Bayonet Lock	Brass	Unshielded	Nylon, Polyamide (PA)	Male Pins, Plug	600 V	Automotive, Communication Systems, Instrumentation	Black	4	Varies by Wire Gauge	5.33 mm	5.84 mm	0.21 in	0.23 in	Weathertight	Backshell	Gold	Free Hanging (In-Line)	-40 °C	115 °C	Plastic	Keyed
Conxall/Switchcraft 6282-4PG-3DC	Bayonet Lock	Brass	Unshielded	Nylon, Polyamide (PA)	Male Pins, Plug	600 V	Automotive, Communication Systems, Instrumentation	Black	4	Varies by Wire Gauge					Weathertight	Backshell	Gold	Free Hanging (In-Line)	-40 °C	115 °C	Plastic	Keyed
Conxall/Switchcraft 6282-4PG-519	Bayonet Lock	Brass	Unshielded	Nylon, Polyamide (PA)	Male Pins, Plug	600 V	Automotive, Communication Systems, Instrumentation	Black	4	Varies by Wire Gauge	4.83 mm		0.19 in	0.21 in	Weathertight	Backshell	Gold	Free Hanging (In-Line)	-40 °C	115 °C	Plastic	Keyed	5.33 mm
Conxall/Switchcraft 6282-4PG-513	Bayonet Lock	Brass	Unshielded	Nylon, Polyamide (PA)	Male Pins, Plug	600 V	Automotive, Communication Systems, Instrumentation	Black	4	Varies by Wire Gauge					Weathertight	Backshell	Gold	Free Hanging (In-Line)	-40 °C	115 °C	Plastic	Keyed		0.13 in, 0.15 in	3.3 mm, 3.81 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.60
		10	$ 10.28
		25	$ 9.89
		50	$ 9.49
		100	$ 8.96
		300	$ 8.17
		500	$ 7.64
		1000	$ 7.01

Description

General part information

6282-4PG Series

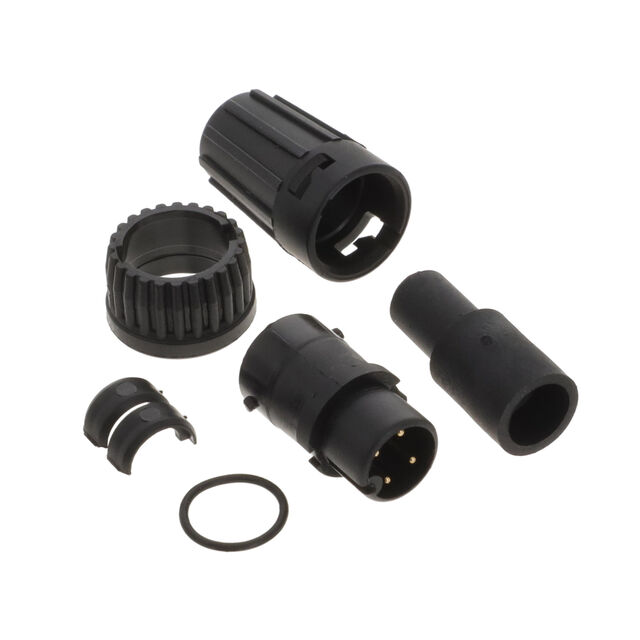

4 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources

No documents available
