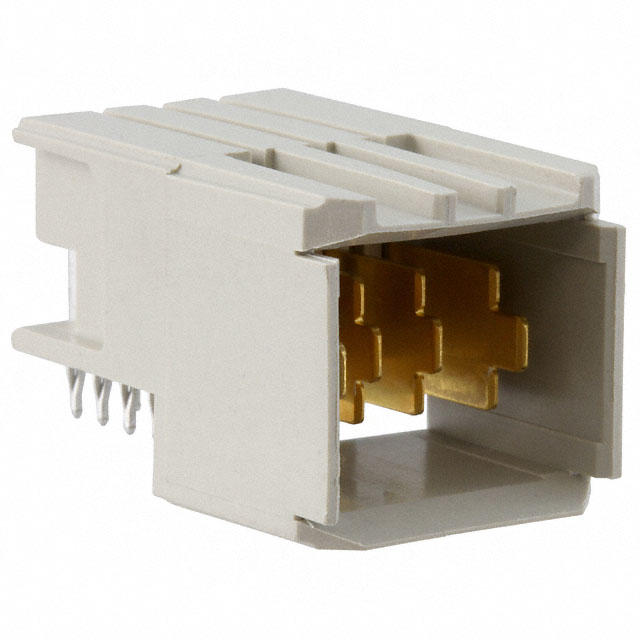

120954-3
ActiveTE Connectivity AMP Connectors
CONN HEADER BLADE PWR 4P EDGE MT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
120954-3
ActiveTE Connectivity AMP Connectors
CONN HEADER BLADE PWR 4P EDGE MT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 120954-3 | 120954 Series |
|---|---|---|
| Color | Gray | Gray |
| Connector Style | Blade Power | Blade Power |
| Connector Type | Male Blades, Header | Male Blades, Header |
| Connector Usage | Backplane | Backplane |
| Contact Finish | Gold, Gold-Palladium | Gold, Gold-Palladium |
| Contact Layout, Typical | 4 Power | 4 Power |
| Features | Board Guide | Board Guide |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Board Edge | Through Hole, Right Angle, Board Edge |
| Number of Positions | 4 | 4 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Termination | Press-Fit | Press-Fit |
| Voltage Rating | 250 VDC | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1520 | $ 10.07 | |
120954 Series
CONN HEADER BLADE PWR 4P EDGE MT
| Part | Material Flammability Rating | Connector Type | Color | Number of Positions Loaded | Number of Positions | Contact Finish | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Features | Contact Layout, Typical | Voltage Rating | Mounting Type | Connector Usage | Number of Rows | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 120954-4 | UL94 V-0 | Header, Male Blades | Gray | All | 4 | Gold, Gold-Palladium | Press-Fit | -55 °C | 125 °C | Board Guide | 4 Power | 250 VDC | Board Edge, Right Angle, Through Hole | Backplane | 1 | Blade Power |
TE Connectivity AMP Connectors 120954-1 | UL94 V-0 | Header, Male Blades | Gray | All | 4 | Gold, Gold-Palladium | Press-Fit | -55 °C | 125 °C | Board Guide | 4 Power | 250 VDC | Board Edge, Right Angle, Through Hole | Backplane | 1 | Blade Power |
TE Connectivity AMP Connectors 120954-3 | UL94 V-0 | Header, Male Blades | Gray | All | 4 | Gold, Gold-Palladium | Press-Fit | -55 °C | 125 °C | Board Guide | 4 Power | 250 VDC | Board Edge, Right Angle, Through Hole | Backplane | 1 | Blade Power |
TE Connectivity AMP Connectors 120954-6 | UL94 V-0 | Header, Male Blades | Gray | All | 4 | Gold, Gold-Palladium | Press-Fit | -55 °C | 125 °C | Board Guide | 4 Power | 250 VDC | Board Edge, Right Angle, Through Hole | Backplane | 1 | Blade Power |
TE Connectivity AMP Connectors 120954-2 | UL94 V-0 | Header, Male Blades | Gray | All | 4 | Gold, Gold-Palladium | Press-Fit | -55 °C | 125 °C | Board Guide | 4 Power | 250 VDC | Board Edge, Right Angle, Through Hole | Backplane | 1 | Blade Power |
Description
General part information
120954 Series
4 Connector Header, Male Blades Board Edge, Through Hole, Right Angle Gray Blade Power
