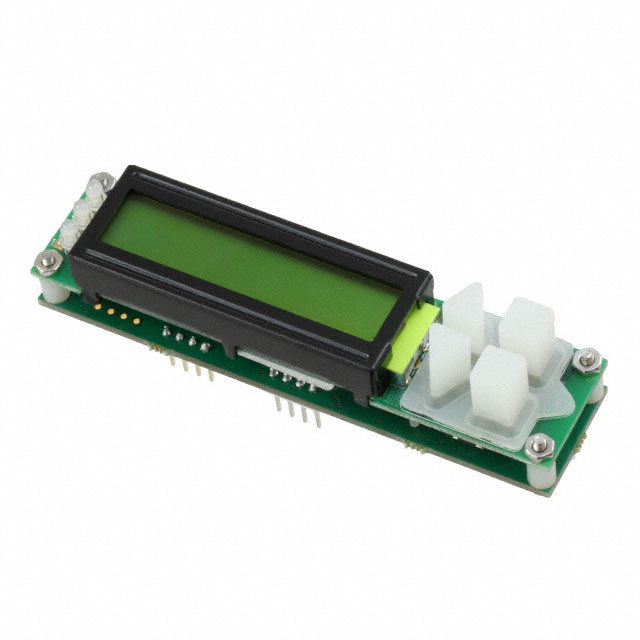

Specification	LK162A-4T-USB

Background Color	Green
Backlight Color	White
Backlight Type	LED
Character Height	2.45 mm
Character Width	3.95 mm
Display Columns	16
Display Mode	Transmissive
Display Rows	2
Display Type	LCD - Monochrome
Interface	TTL, RS-232, USB, I2C
Number of Characters	32 characters
Operating Temperature (Max)	50 °C
Operating Temperature (Min)	0 °C
Outline Height	31.14 mm
Outline Length	96.4 mm
Outline Width	23 mm
Text Color	Black
Viewing Area Length	51.6 mm
Viewing Area Width	11.9 mm
Voltage - Supply (Maximum)	5.25 V
Voltage - Supply (Minimum)	4.75 V

LK162 Series

Part	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Interface	Character Height	Character Width	Dot Size Height	Dot Size Width	Operating Temperature (Min)	Operating Temperature (Max)	Outline Width	Outline Length	Outline Height	Viewing Area Width	Viewing Area Length	Text Color	Character Width (Dots)	Character Height (Dots)	Display Type	Number of Characters	Display Rows	Display Columns	Backlight Type	Backlight Color	Background Color	Display Mode	Character Format Feature
Matrix Orbital LK162-12-R	5.25 V	4.75 V	I2C RS-232 TTL	5.55 mm	2.95 mm	0.65 mm	0.55 mm	0 °C	50 °C	36 mm	80 mm	28.82 mm	11.5 mm	56.2 mm	Red	5 Dots	8 Dots	LCD - Monochrome	32 characters	2	16	LED	Red	Black
Matrix Orbital LK162-12-R-V-E	15 V	9 VDC	I2C RS-232 TTL	5.55 mm	2.95 mm	0.65 mm	0.56 mm	-20 °C	70 °C	36 mm	80 mm	28.82 mm	11.5 mm	56.2 mm	Red	5 Dots	8 Dots	LCD - Monochrome	32 characters	2	16			Black
Matrix Orbital LK162B-7T-USB-WB-E	5.25 V	4.75 V	I2C RS-232 TTL USB	2.45 mm	3.95 mm	0.65 mm	0.55 mm	-20 °C	70 °C	23 mm	96.4 mm	31.14 mm	11.9 mm	51.6 mm	White	5 Dots	8 Dots	LCD - Monochrome	32 characters	2	16	LED	White	Blue	Transmissive
Matrix Orbital LK162A-4T-TCI-E	5.25 V	4.75 V	I2C RS-232 TTL	2.45 mm	3.95 mm			-20 °C	70 °C	23 mm	96.4 mm	31.14 mm	11.9 mm	51.6 mm	Blue Green Red			LCD - Monochrome	32 characters	2	16	LED	Blue Green Red	Black	Transmissive
Matrix Orbital LK162B-7T-FGW-V	15 V	9 VDC	I2C RS-232 TTL	2.45 mm	3.95 mm	0.65 mm	0.55 mm	0 °C	50 °C	23 mm	96.4 mm	31.14 mm	11.9 mm	51.6 mm	Black	5 Dots	8 Dots	LCD - Monochrome	32 characters	2	16	LED	White	White	Transmissive
Matrix Orbital LK162-12-USB-WB	5.25 V	4.75 V	I2C RS-232 TTL USB	5.55 mm	2.95 mm	0.65 mm	0.56 mm	0 °C	50 °C	36 mm	80 mm	28.82 mm	11.5 mm	56.2 mm	White	5 Dots	8 Dots	LCD - Monochrome	32 characters	2	16			Blue
Matrix Orbital LK162-12-WB-V-E	5.25 V	4.75 V	I2C RS-232	4.89 mm	2.78 mm	0.55 mm	0.5 mm	-20 °C	70 °C	36 mm	80 mm	9 mm	26.2 mm	62.5 mm	White	5 Dots	7 Dots		32 characters	2	16	LED	Blue	Blue		Cursor
Matrix Orbital LK162B-7T-USB	5.25 V	4.75 V	I2C RS-232 TTL USB	5.55 mm	2.95 mm	0.65 mm	0.55 mm	0 °C	50 °C	35 mm	125 mm	13.4 mm	11.5 mm	61 mm	Black	5 Dots	8 Dots	LCD - Monochrome	32 characters	2	16	LED	White	Green	Transmissive
Matrix Orbital LK162-12-R-V	15 V	9 VDC	I2C RS-232 TTL	5.55 mm	2.95 mm	0.65 mm	0.55 mm	0 °C	50 °C	36 mm	80 mm	28.82 mm	11.5 mm	56.2 mm	Red	5 Dots	8 Dots	LCD - Monochrome	32 characters	2	16	LED	Red	Black
Matrix Orbital LK162-12-IY-V	15 V	9 VDC	I2C RS-232 TTL	5.55 mm	2.95 mm	0.65 mm	0.56 mm	0 °C	50 °C	36 mm	80 mm	28.82 mm	11.5 mm	56.2 mm	Yellow	5 Dots	8 Dots	LCD - Monochrome	32 characters	2	16			Black
