BPT-125MM
ActiveBertech
TAPE MASKING BLUE 4.92"X72YDS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BPT-125MM
ActiveBertech
TAPE MASKING BLUE 4.92"X72YDS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BPT-125MM |
|---|---|
| Adhesive | Silicone |
| Backing, Carrier | Polyester Film |
| Color | Blue |
| Length | 66 m |
| Length | 216 ft |
| Length | 72 yd |
| Tape Type | Masking |
| Temperature Range [Max] | 204 °C |
| Temperature Range [Max] | 399 °F |
| Temperature Range [Min] | -99 °F |
| Temperature Range [Min] | -73 °C |
| Thickness | 3 mils |
| Thickness | 0.003 in |
| Thickness | 0.076 mm |
| Thickness - Adhesive | 2 mils |
| Thickness - Adhesive | 0.051 mm |
| Thickness - Adhesive [x] | 0.002 " |
| Thickness - Backing, Carrier | 1 mils |
| Thickness - Backing, Carrier | 0.025 mm |
| Thickness - Backing, Carrier | 0.001 " |
| Usage | Masking |
| Width [y] | 125 mm |
| Width [y] | 4.92 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 57.96 | |
Description
General part information
BPT-125MM

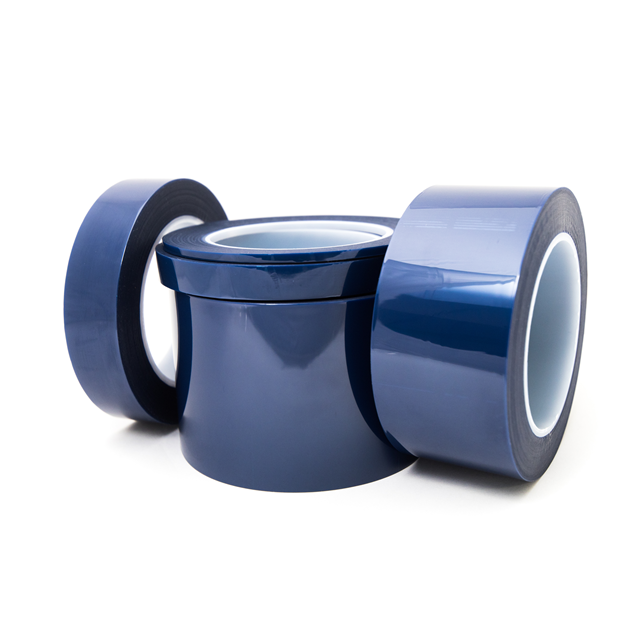

Masking Tape Silicone Adhesive Blue 4.92" (125.00mm) X 216' (66.0m) 72 yds
