96BB2-006-R
ActiveGrayhill Inc.

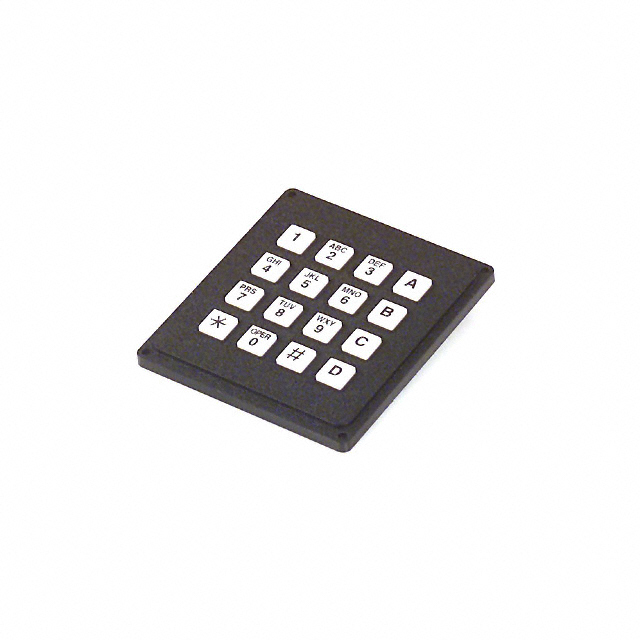

SWITCH KEYPAD 16KEY 0.005A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
96BB2-006-R
ActiveGrayhill Inc.
SWITCH KEYPAD 16KEY 0.005A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 96BB2-006-R | 96BB2 Series |
|---|---|---|
| Contact Rating @ Voltage | 0.005 A, 12 VDC | 0.005 - 12 A |
| Illumination | Non-Illuminated | Non-Illuminated, Illuminated |
| Ingress Protection | IP40 | IP40 |
| Key Color | White | White, Black |
| Key Type | Polymer | Polymer |
| Legend | Telephone Format, A ~ D | 0 ~ 9, A ~ F, Telephone Format, A ~ D, Telephone Format, Function Keys |
| Legend Color | Black | Black, White |
| Legend Type | Fixed | Fixed |
| Matrix (Columns x Rows) [custom] | 4 | 4 |
| Matrix (Columns x Rows) [custom] | 4 | 4 |
| Mounting Type | Panel Mount, Rear | Panel Mount, Front, Panel Mount, Rear |
| Number of Keys | 16 | 16 |
| Operating Temperature [Max] | 80 C | 80 C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Operational Life | 1000000 Cycles | 1000000 Cycles |
| Output Type | 1.81 mOhm | 1.81 mOhm |
| Panel Cutout Dimensions [x] | 68.58 mm | 68.58 mm |
| Panel Cutout Dimensions [y] | 63.5 mm | 63.5 mm |
| Switch Type | Conductive Rubber | Conductive Rubber |
| Termination Style | Pin Header | Pin Header |
96BB2 Series
SWITCH KEYPAD 16KEY 0.005A 12V
| Part | Termination Style | Ingress Protection | Number of Keys | Key Type | Mounting Type | Illumination | Switch Type | Operational Life | Matrix (Columns x Rows) [custom] | Matrix (Columns x Rows) [custom] | Contact Rating @ Voltage | Legend | Output Type | Legend Type | Operating Temperature [Min] | Operating Temperature [Max] | Key Color | Legend Color | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Grayhill Inc. 96BB2-002-F | Pin Header | IP40 | 16 | Polymer | Panel Mount, Front | Non-Illuminated | Conductive Rubber | 1000000 Cycles | 4 | 4 | 0.005 A, 12 VDC | 0 ~ 9, A ~ F | 1.81 mOhm | Fixed | -30 ░C | 80 C | White | Black | ||
Grayhill Inc. 96BB2-006-R-EL | Pin Header | IP40 | 16 | Polymer | Panel Mount, Rear | Illuminated | Conductive Rubber | 1000000 Cycles | 4 | 4 | 0.005 A, 12 VDC | Telephone Format, A ~ D | 1.81 mOhm | Fixed | -30 ░C | 80 C | White | Black | 68.58 mm | 63.5 mm |
Grayhill Inc. 96BB2-008-F | Pin Header | IP40 | 16 | Polymer | Panel Mount, Front | Non-Illuminated | Conductive Rubber | 1000000 Cycles | 4 | 4 | 0.005 A, 12 VDC | Function Keys, Telephone Format | 1.81 mOhm | Fixed | -30 ░C | 80 C | White | Black | ||
Grayhill Inc. 96BB2-056-R | Pin Header | IP40 | 16 | Polymer | Panel Mount, Rear | Non-Illuminated | Conductive Rubber | 1000000 Cycles | 4 | 4 | 0.005 A, 12 VDC | Telephone Format, A ~ D | 1.81 mOhm | Fixed | -30 ░C | 80 C | Black | White | 68.58 mm | 63.5 mm |
Grayhill Inc. 96BB2-006-R | Pin Header | IP40 | 16 | Polymer | Panel Mount, Rear | Non-Illuminated | Conductive Rubber | 1000000 Cycles | 4 | 4 | 0.005 A, 12 VDC | Telephone Format, A ~ D | 1.81 mOhm | Fixed | -30 ░C | 80 C | White | Black | 68.58 mm | 63.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 37.95 | |
| 10 | $ 34.26 | |||
| 25 | $ 32.82 | |||
| 50 | $ 30.77 | |||
| 100 | $ 29.74 | |||
| 250 | $ 28.10 | |||
Description
General part information
96BB2 Series
Keypad Switch 16 Polymer Keys Conductive Rubber Contacts Matrix Output Non-Illuminated 0.005A @ 12VDC
