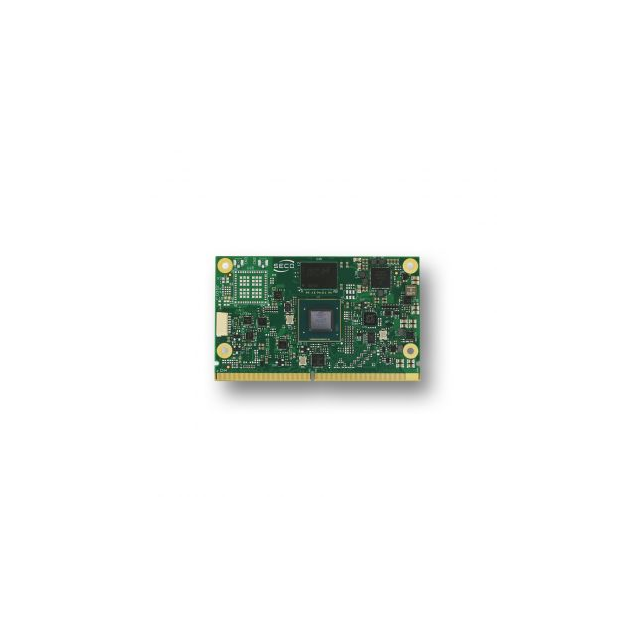

RC12-5520-2311-I2-V

Active

UDOO

SBC 1.5GHZ 10 CORE 2GB/0GB RAM

Search across all available documentation for this part.

Active

UDOO

SBC 1.5GHZ 10 CORE 2GB/0GB RAM

Technical Specifications

Parameters and characteristics for this part

Specification	RC12-5520-2311-I2-V

Architecture	MPU
Connectivity	SPI, USB, UART, Ethernet, MMC/SD/SDIO, I2S, CANbus, PCIe, I2C
Core Processor	ARM® Cortex®-M4, ARM® Cortex®-A53
Number of I/O	14
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Peripherals	HDMI, LVDS
RAM Size	2 GB
Speed	1.5 GHz

SBC 1.5GHZ 10 CORE 2GB/0GB RAM

Part	RAM Size	Operating Temperature [Max]	Operating Temperature [Min]	Architecture	Speed	Connectivity	Number of I/O	Package / Case	Peripherals	Core Processor
UDOO RC12-5520-2311-I2-V	2 GB	85 °C	-40 °C	MPU	1.5 GHz	CANbus, Ethernet, I2C, I2S, MMC/SD/SDIO, PCIe, SPI, UART, USB	14	Module	HDMI, LVDS	ARM® Cortex®-A53, ARM® Cortex®-M4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 348.45

General part information

ARM® Cortex®-A53, ARM® Cortex®-M4 System On Chip (SOC) IC - 1.5GHz

Technical documentation and resources

No documents available
