EMJ325KB7226MMHP

Active

TAIYO YUDEN

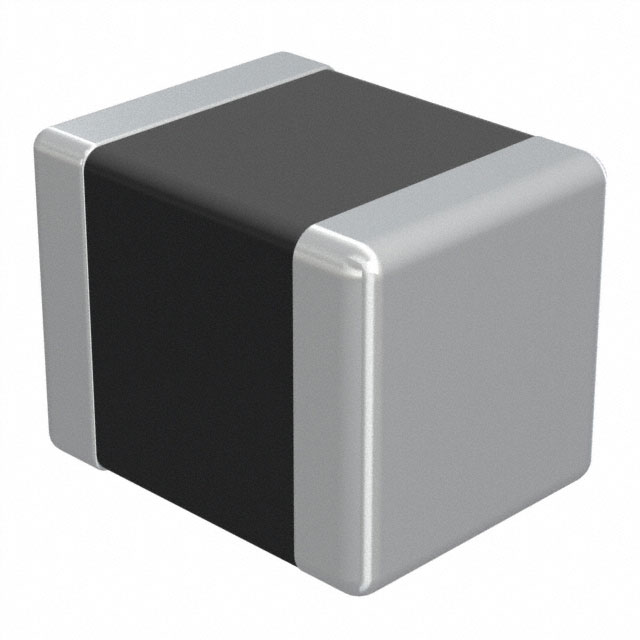

SMD MULTILAYER CERAMIC CAPACITOR, 22 ΜF, 16 V, 1210 [3225 METRIC], ± 20%, X7R

Search across all available documentation for this part.

Active

TAIYO YUDEN

SMD MULTILAYER CERAMIC CAPACITOR, 22 ΜF, 16 V, 1210 [3225 METRIC], ± 20%, X7R

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EMJ325KB7226MMHP	EMJ325K Series

Applications	SMPS Filtering, Boardflex Sensitive, Automotive	SMPS Filtering, Boardflex Sensitive, Automotive
Capacitance	22 µF	22 µF
Features	Soft Termination	Soft Termination
Mounting Type	Surface Mount, MLCC	Surface Mount, MLCC
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	1210	1210
Package / Case	3225 Metric	3225 Metric
Ratings	AEC-Q200	AEC-Q200
Size / Dimension [x]	3.2 mm	3.2 mm
Size / Dimension [x]	0.126 in	0.126 in
Size / Dimension [y]	2.5 mm	2.5 mm
Size / Dimension [y]	0.098 in	0.098 in
Temperature Coefficient	X7R	X7R
Thickness (Max) [Max]	2.8 mm	2.8 mm
Thickness (Max) [Max]	0.11 in	0.11 in
Tolerance	20 %	10 - 20 %
Voltage - Rated [custom]	16 V	16 V

SMD MULTILAYER CERAMIC CAPACITOR, 22 ΜF, 16 V, 1210 [3225 METRIC], ± 20%, X7R

Part	Tolerance	Voltage - Rated [custom]	Applications	Thickness (Max) [Max]	Thickness (Max) [Max]	Ratings	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Temperature Coefficient	Package / Case	Package / Case	Mounting Type	Features	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]
TAIYO YUDEN EMJ325KB7226MMHP	20 %	16 V	Automotive, Boardflex Sensitive, SMPS Filtering	2.8 mm	0.11 in	AEC-Q200	3.2 mm	2.5 mm	0.126 in	0.098 in	X7R	1210	3225 Metric	MLCC, Surface Mount	Soft Termination	22 µF	-55 °C	125 °C
TAIYO YUDEN EMJ325KB7226KMHT	10 %	16 V	Automotive, Boardflex Sensitive	2.8 mm	0.11 in	AEC-Q200	3.2 mm	2.5 mm	0.126 in	0.098 in	X7R	1210	3225 Metric	MLCC, Surface Mount	Soft Termination	22 µF	-55 °C	125 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

22 µF ±20% 16V Ceramic Capacitor X7R 1210 (3225 Metric)
