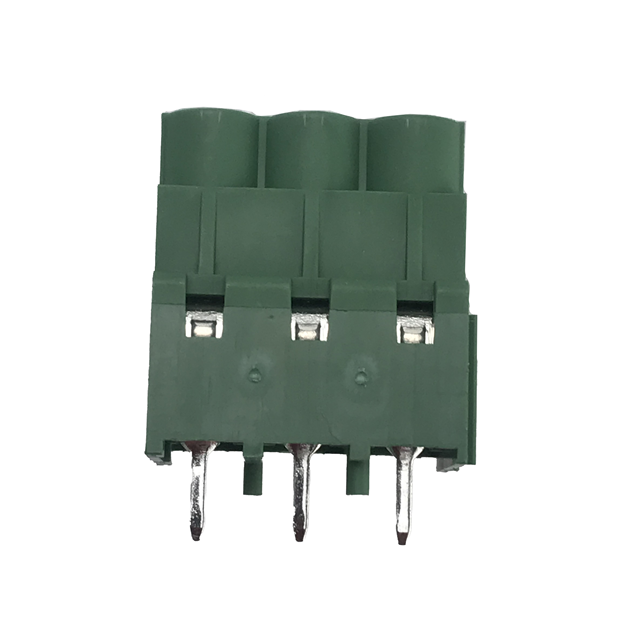

MB910-635M03

Active

Deca

PCB TERMINAL BLOCK WITH STANDOFF

Search across all available documentation for this part.

Active

Deca

PCB TERMINAL BLOCK WITH STANDOFF

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MB910-635M03	MB910 Series

Clamp Material - Plating	Steel, Nickel Plated	Steel, Nickel Plated
Color	Green	Green
Contact Material - Plating [custom]	Brass - Tin Plated	Brass - Tin Plated
Current	30 A	30 A
Features	Interlocking (Side)	Interlocking (Side)
Mating Orientation	Horizontal with Board	Horizontal with Board
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.25 in	0.25 - 0.375 in
Pitch [x]	6.35 mm	6.35 - 9.53 mm
Positions Per Level	3	3
Screw Material - Plating	Steel, Zinc Plated	Steel, Nickel Plated, Zinc Plated
Screw Thread	M3	M3
Torque - Screw	1 Nm	1 Nm
Torque - Screw	8.9 Lb-In	8.9 Lb-In
Voltage	300 V	300 - 600 V
Wire Gauge [Max]	24 AWG	24 AWG
Wire Gauge [Min]	10 AWG	10 AWG
Wire Termination	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp

PCB TERMINAL BLOCK WITH STANDOFF

Part	Positions Per Level	Wire Gauge [Max]	Wire Gauge [Min]	Clamp Material - Plating	Color	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage	Features	Mating Orientation	Screw Thread	Current	Wire Termination	Screw Material - Plating	Number of Levels	Contact Material - Plating [custom]	Pitch [x]	Pitch [x]	Torque - Screw	Torque - Screw
Deca MB910-952M03	3	24 AWG	10 AWG	Nickel Plated, Steel	Green	Through Hole	-40 °C	105 ░C	600 V	Interlocking (Side)	Horizontal with Board	M3	30 A	Screw - Rising Cage Clamp	Nickel Plated, Steel	1	Brass - Tin Plated	9.53 mm	0.375 in	1 Nm	8.9 Lb-In
Deca MB910-635M03	3	24 AWG	10 AWG	Nickel Plated, Steel	Green	Through Hole	-40 °C	105 ░C	300 V	Interlocking (Side)	Horizontal with Board	M3	30 A	Screw - Rising Cage Clamp	Steel, Zinc Plated	1	Brass - Tin Plated	6.35 mm	0.25 in	1 Nm	8.9 Lb-In

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Wire to Board Terminal Block Horizontal with Board 0.250" (6.35mm) Through Hole
