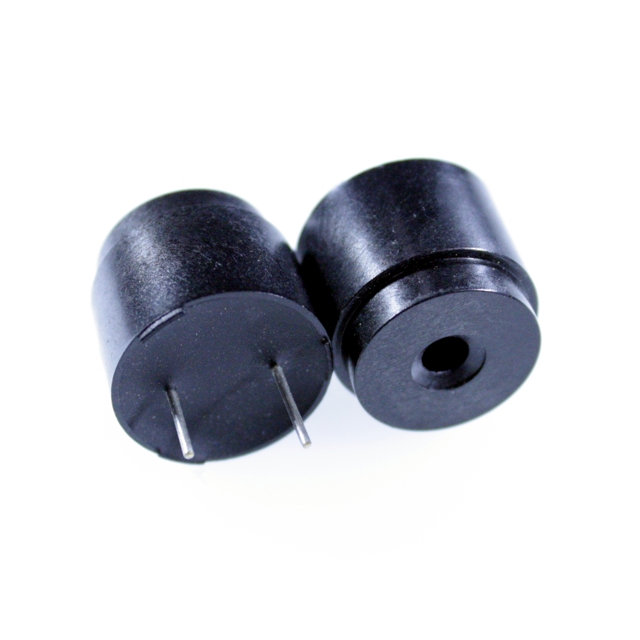

BMT1606XH14

Active

BeStar Technologies, Inc.

BUZZER MAGNETIC 6V 16MM TH

Search across all available documentation for this part.

Active

BeStar Technologies, Inc.

BUZZER MAGNETIC 6V 16MM TH

Technical Specifications

Parameters and characteristics for this part

BUZZER MAGNETIC 6V 16MM TH

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Technology	Port Location	Size / Dimension [diameter]	Size / Dimension [diameter]	Frequency	Height - Seated (Max)	Height - Seated (Max) [Max]	Sound Pressure Level (SPL)	Termination	Current - Supply	Voltage Range [Max]	Voltage Range [Min]
BeStar Technologies, Inc. BMT1606XH14	Through Hole	-30 ░C	85 °C	6 VDC	Magnetic	Top	0.63 in	16 mm	2.3 kHz	14 mm	0.551 "	85 dB	PC Pins	30 mA	8 V	4 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buzzers Magnetic 6 V 30mA 2.3kHz 85dB @ 6V, 10cm Through Hole PC Pins
