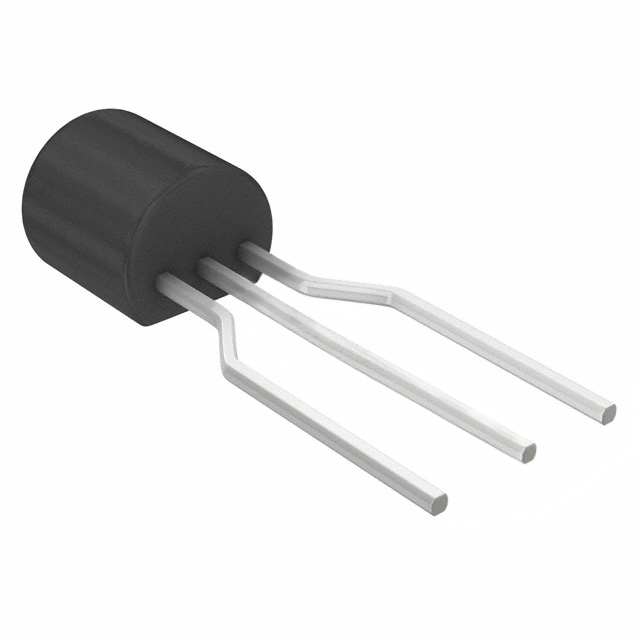

S-80837CLY-Z2-U
ActiveABLIC Inc.
IC SUPERVISOR 1 CHANNEL TO92-3
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
S-80837CLY-Z2-U
ActiveABLIC Inc.
IC SUPERVISOR 1 CHANNEL TO92-3
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | S-80837CLY-Z2-U | S-80837 Series |
|---|---|---|
| Mounting Type | Through Hole | Surface Mount, Through Hole |
| Number of Voltages Monitored | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output | Totem Pole, Push-Pull | Open Drain or Open Collector, Totem Pole, Push-Pull |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | SOT-343, SC-82A, TO-92-3, TO-243AA, TO-226-3, TO-92-3 (TO-226AA) Formed Leads, 4-SMD, Flat Leads |
| Package / Case | - | TO-226-3, TO-226AA |
| Reset | Active Low | Active Low |
| Supplier Device Package | TO-92-3 | SC-82AB, TO-92-3, SOT-89-3, SNT-4A |
| Type | Voltage Detector | Voltage Detector |
| Voltage - Threshold | 3.7 V | 3.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2000 | $ 0.29 | |
| 6000 | $ 0.27 | |||
| 10000 | $ 0.26 | |||
S-80837 Series
IC SUPERVISOR 1 CHANNEL SC82AB
| Part | Number of Voltages Monitored | Package / Case | Voltage - Threshold | Output | Mounting Type | Type | Supplier Device Package | Reset | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|
ABLIC Inc. S-80837CNNB-B8WT2G | 1 | SC-82A, SOT-343 | 3.7 V | Open Drain or Open Collector | Surface Mount | Voltage Detector | SC-82AB | Active Low | 85 °C | -40 °C | |
ABLIC Inc. S-80837CNY-B2-U | 1 | TO-92-3 | 3.7 V | Open Drain or Open Collector | Through Hole | Voltage Detector | TO-92-3 | Active Low | 85 °C | -40 °C | TO-226-3, TO-226AA |
ABLIC Inc. S-80837CLUA-B6WT2U | 1 | TO-243AA | 3.7 V | Push-Pull, Totem Pole | Surface Mount | Voltage Detector | SOT-89-3 | Active Low | 85 °C | -40 °C | |
ABLIC Inc. S-80837CNNB-B8WT2U | 1 | SC-82A, SOT-343 | 3.7 V | Open Drain or Open Collector | Surface Mount | Voltage Detector | SC-82AB | Active Low | 85 °C | -40 °C | |
ABLIC Inc. S-80837CLY-Z2-U | 1 | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | 3.7 V | Push-Pull, Totem Pole | Through Hole | Voltage Detector | TO-92-3 | Active Low | 85 °C | -40 °C | |
ABLIC Inc. S-80837CLPF-B6WTFG | 1 | 4-SMD, Flat Leads | 3.7 V | Push-Pull, Totem Pole | Surface Mount | Voltage Detector | SNT-4A | Active Low | 85 °C | -40 °C |
Description
General part information
S-80837 Series
Supervisor Push-Pull, Totem Pole 1 Channel TO-92-3
