MHDGWT-0000-000N0BM440E-SB01
ActiveNew Energy

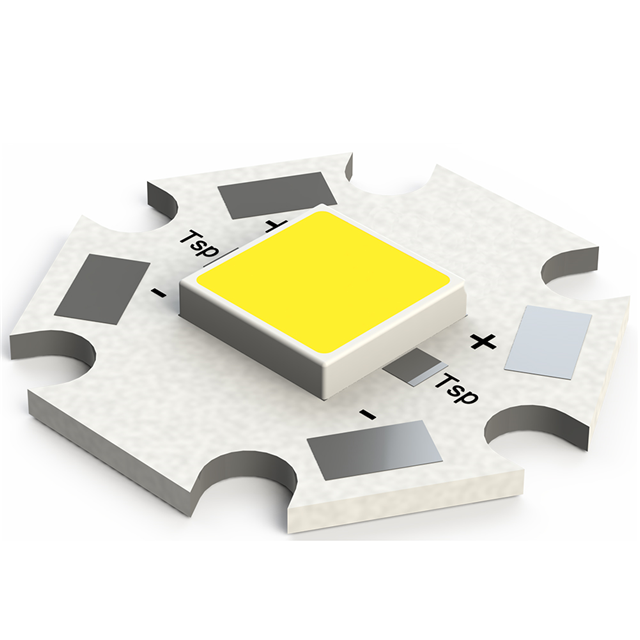

LED MOD MHD-G WH STARBOARD 4000K
Deep-Dive with AI
Search across all available documentation for this part.
MHDGWT-0000-000N0BM440E-SB01
ActiveNew Energy
LED MOD MHD-G WH STARBOARD 4000K
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MHDGWT-0000-000N0BM440E-SB01 | MHDGWT Series |
|---|---|---|
| CCT (K) | 4000 K | 2700 - 6500 K |
| Color | Neutral, White | Cool, White, Warm, Neutral |
| Configuration | Starboard | Starboard |
| CRI (Color Rendering Index) | 70 | 70 - 80 |
| Current - Max [Max] | 500 mA | 500 mA |
| Current - Test | 350 mA | 350 mA |
| Height [z] | 1.5 mm | 1.5 mm |
| Lens Type | Flat | Flat |
| Lumens/Watt @ Current - Test | 121 lm/W | 105 - 130 lm/W |
| Luminous Flux @ Current/Temperature | 1538 lm | 1335 - 1650 lm |
| Luminous Flux @ Current/Temperature | - | 1380 - 1710 lm |
| Luminous Flux @ Current/Temperature | - | 1290 - 1590 lm |
| Size / Dimension [diameter] | 19.89 mm | 19.89 mm |
| Temperature - Test | 85 °C | 85 °C |
| Type | LED Module | LED Module |
| Viewing Angle | 115 ° | 115 ° |
| Voltage - Forward (Vf) (Typ) | 36.4 V | 36.4 V |
MHDGWT Series
CHIP ON BOARD (COB) LIGHT SOURCES ROHS
| Part | Temperature - Test | Configuration | Voltage - Forward (Vf) (Typ) | Height [z] | Type | Viewing Angle | Lumens/Watt @ Current - Test | CCT (K) | Current - Test | Lens Type | Luminous Flux @ Current/Temperature [Max] | Luminous Flux @ Current/Temperature | Luminous Flux @ Current/Temperature [Min] | Color | CRI (Color Rendering Index) | Current - Max [Max] | Size / Dimension [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
New Energy MHDGWT-0000-000N0BN265E-SB01 | 85 °C | Starboard | 36.4 V | 1.5 mm | LED Module | 115 ° | 130 lm/W | 6500 K | 350 mA | Flat | 1710 lm | 1650 lm | 1590 lm | Cool, White | 70 | 500 mA | 19.89 mm |
New Energy MHDGWT-0000-000N0HK427G-SB01 | 85 °C | Starboard | 36.4 V | 1.5 mm | LED Module | 115 ° | 105 lm/W | 2700 K | 350 mA | Flat | 1380 lm | 1335 lm | 1290 lm | Warm, White | 80 | 500 mA | 19.89 mm |
New Energy MHDGWT-0000-000N0BM440E-SB01 | 85 °C | Starboard | 36.4 V | 1.5 mm | LED Module | 115 ° | 121 lm/W | 4000 K | 350 mA | Flat | 1538 lm | Neutral, White | 70 | 500 mA | 19.89 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 500 | $ 10.16 | |
Description
General part information
MHDGWT Series
LED Lighting COBs Engines Modules LED Module MHD-G White, Neutral Starboard
