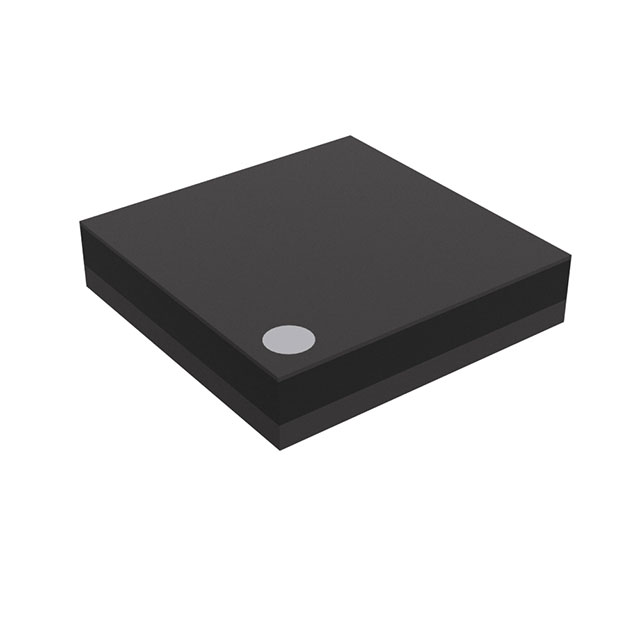

RP601Z330A-E2-F
ObsoleteNisshinbo Micro Devices Inc
IC REG BUCK-BST 3.3V 1A 16WLCSP
Deep-Dive with AI
Search across all available documentation for this part.
RP601Z330A-E2-F
ObsoleteNisshinbo Micro Devices Inc
IC REG BUCK-BST 3.3V 1A 16WLCSP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RP601Z330A-E2-F |
|---|---|
| Current - Output | 1 A |
| Frequency - Switching | 2.4 MHz |
| Function | Step-Up/Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Supplier Device Package | WLCSP-16-P1 |
| Synchronous Rectifier | True |
| Topology | Buck-Boost |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 2.3 V |
| Voltage - Output (Min/Fixed) | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
RP601Z330A-E2-F
Buck-Boost Switching Regulator IC Positive Fixed 3.3V 1 Output 1A 16-WFBGA, WLCSP
Documents
Technical documentation and resources
No documents available
